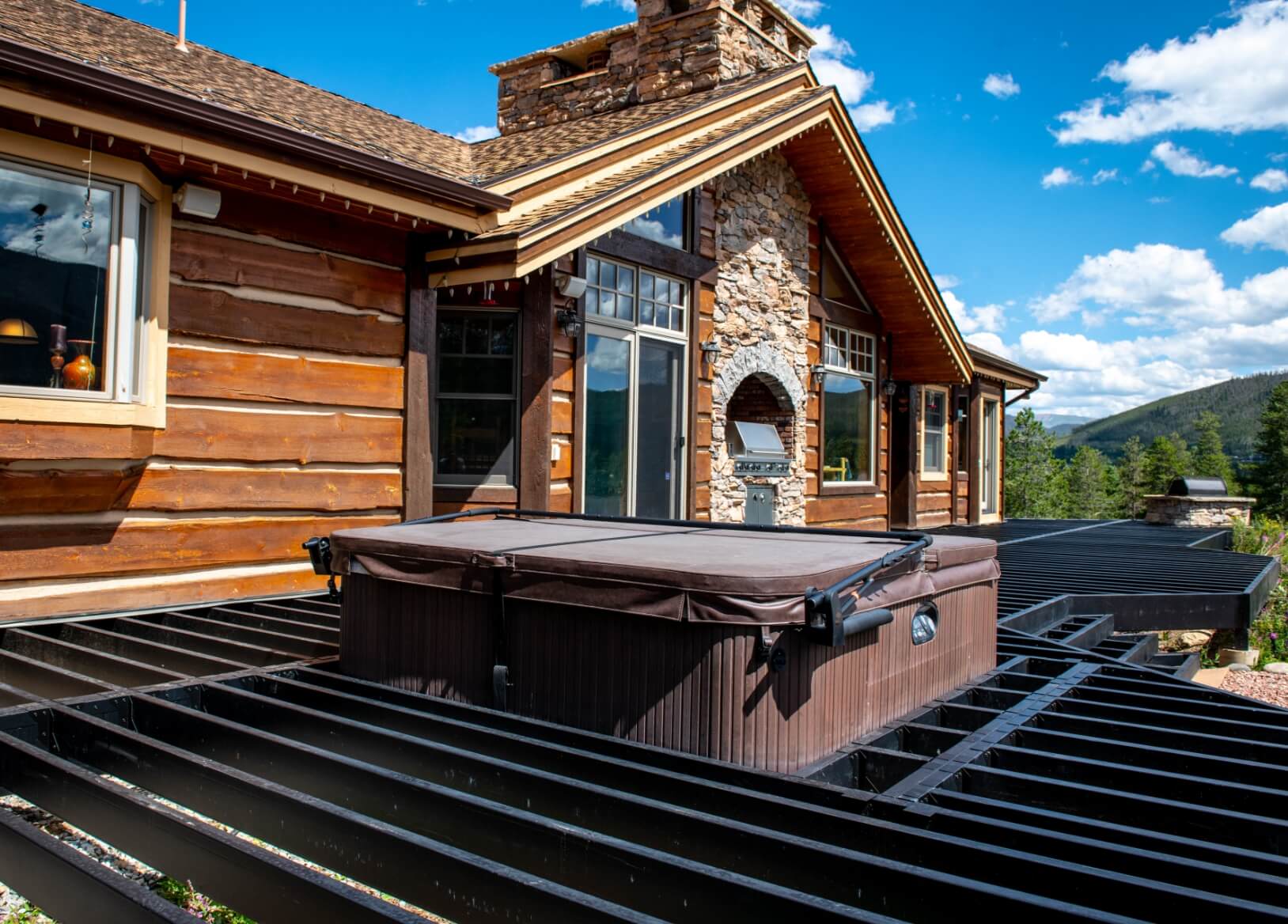

Evolution Framing Key Features

Key Features

EASY TO INSTALL | If you know how to frame with wood, you can frame with Evolution.

STRAIGHT, UNIFORM PIECES | Builds flat, stays flat!

GREATER SPANS | Fewer posts for less obstructed views.

COMPATIBILITY | Works with any type or brand of decking.

BEAUTIFUL | The premium Black Sand powder coat provides a pleasing look that virtually disappears.

CLASS-A FIRE RATING | A noncombustible material that’s resistant to fire and meets the requirements for use in all Wildland Urban Interface (WUI) zones.

PROTECTED | Invulnerable to rotting, warping, splitting and insect damage

Try our interactive
visualizer tool!

Explore Now

Download the
Sales Sheet

Check it Out

Download the
Product Guide

See It All

Get Training Tips
and Insights

See More

Visit the Sales Sheet for more details.

S-Ledger 12" (305mm) OC / 16" (406mm) OC

Lengths:
12' - 144" (3658mm)
20' - 240" (6096mm)

Evolution’s S-Ledger is an engineered interlocking design with the Ledger Bracket that eliminates the need for excessive fasteners and drastically speeds up installation. The “S” shape provides a sturdy, safe deck connection that will offer peace of mind for decades. The S-Ledger is available with pre-punched, standard spacing options that simplify deck construction.

Blank S-Ledger

Lengths:
12' - 144" (3658mm)
20' - 240" (6096mm)

Evolution's Blank S-Ledger is designed to work with custom, non-standard joist spacing. The Blank S-Ledger can also be used around bay windows and other angled ledger attachments.

Ledger Bracket

Used with the S-Ledger and joist or fastened to a flush beam.

16 Gauge 2x6 Joist (G60 Galvanized & Black Sand Powder Coated)

Lengths:
12' - 144" (3658mm)
14' - 168" (4267mm)
16' - 192" (4877mm)
18' - 216" (5486mm)
20' - 240" (6096mm)

Evolution’s Joists are a familiar shape that install quickly and easily with minimal fasteners. The steel joists will hold their shape, providing a perfectly flat deck surface that will not sag or warp over the life of your deck.

Joist Cap

Covers open joist to provide clean, finished look and deter pests and animals.

Visit the Sales Sheet for more details as well as custom options.

Rim Joist 12" (305mm) OC / 16" (406mm) OC (for use with fascia only)

Lengths:
8' - 96" (2438mm)

Evolution’s Rim Joist incorporates the same pre-punched and non-punched system as the S-Ledger for consistent, quicker installation without the hassle. Evolution’s Rim Joists provide a solution for any installation application, including an option for curved decks. The Rim Joist attaches to the Joist with minimal fasteners and provides a perfectly flat surface to attach trim or fascia.

Blank Rim Joist (for use with or without fascia)

Lengths:
8' - 96" (2438mm)

Curved Rim Joist

Lengths:
8' - 96" (2438mm)

Rim Joist Bracket (for use with the curved rim joist only)

Inserts into joist at the end of the deck for attaching the curved rim joist.

Visit the Sales Sheet for more details as well as custom options.

Post - 3.5" x 3.5"

Lengths:
8' - 96" (2438mm) NEW!
10' - 120" (3048mm)

Evolution’s steel post and brackets provide the perfect solution to support your deck. The black powder coated posts look great on their own or can be customized with the trim of your choice.

NEW! Post - 5.5" x 5.5"

Lengths:
8' - 96" (2438mm)
20’ – 240” (6096mm)

Evolution’s steel post and brackets provide the perfect solution to support your deck. The black powder coated posts look great on their own or can be customized with the trim of your choice.

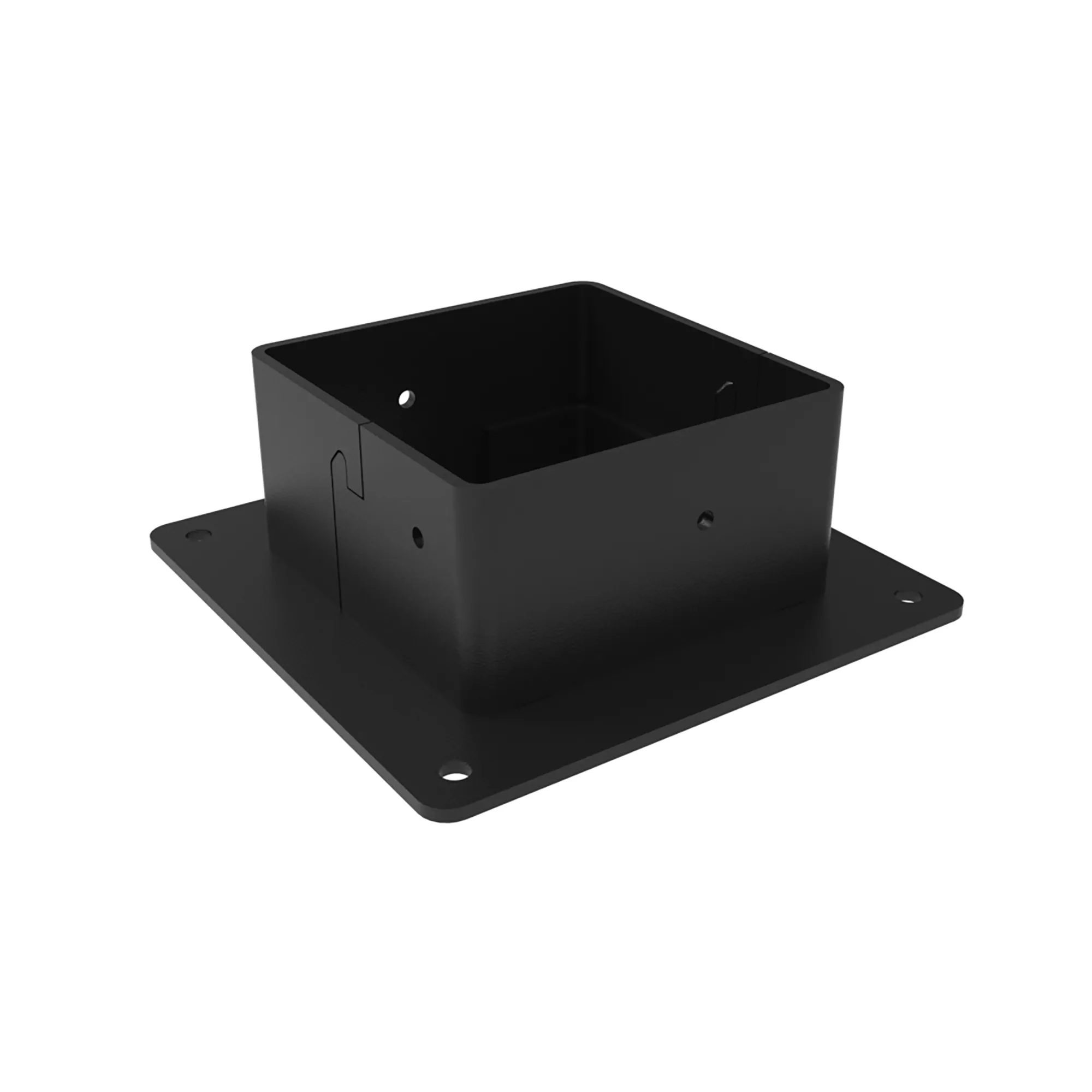

NEW! Post / Anchor Bracket

Lengths:
3.5" (89mm)
5.5" (140mm)

Secures post to concrete landing or pier.

Single Beam / Post Bracket

Lengths:
3.5" (89mm)
5.5" (140mm) NEW!

Used to secure post to single beam.

Double Beam / Post Bracket

Lengths:
3.5" (89mm)
5.5" (140mm) NEW!

Used to secure post to double beam.

2x11 Beam

Lengths:
8' - 96" (2438mm)
12' - 144" (3658mm)
16' - 192" (4877mm)
20' - 240" (6096mm)

Evolution’s Beam has been engineered to achieve longer spans between supports, eliminating excessive posts and obstructed views.

Double Beam Track

Lengths:
4' - 48" (1219mm)

Packaged in bags of two and used to cap the top and bottom of two beams to quickly and easily make a double beam.

Beam Cap

Covers open beams to provide clean, finished look and deter pests and animals.

Visit the Sales Sheet for more details as well as custom options.

F-50 Bracket

Used with S-Ledger, joist, and blocking as well as many other applications.

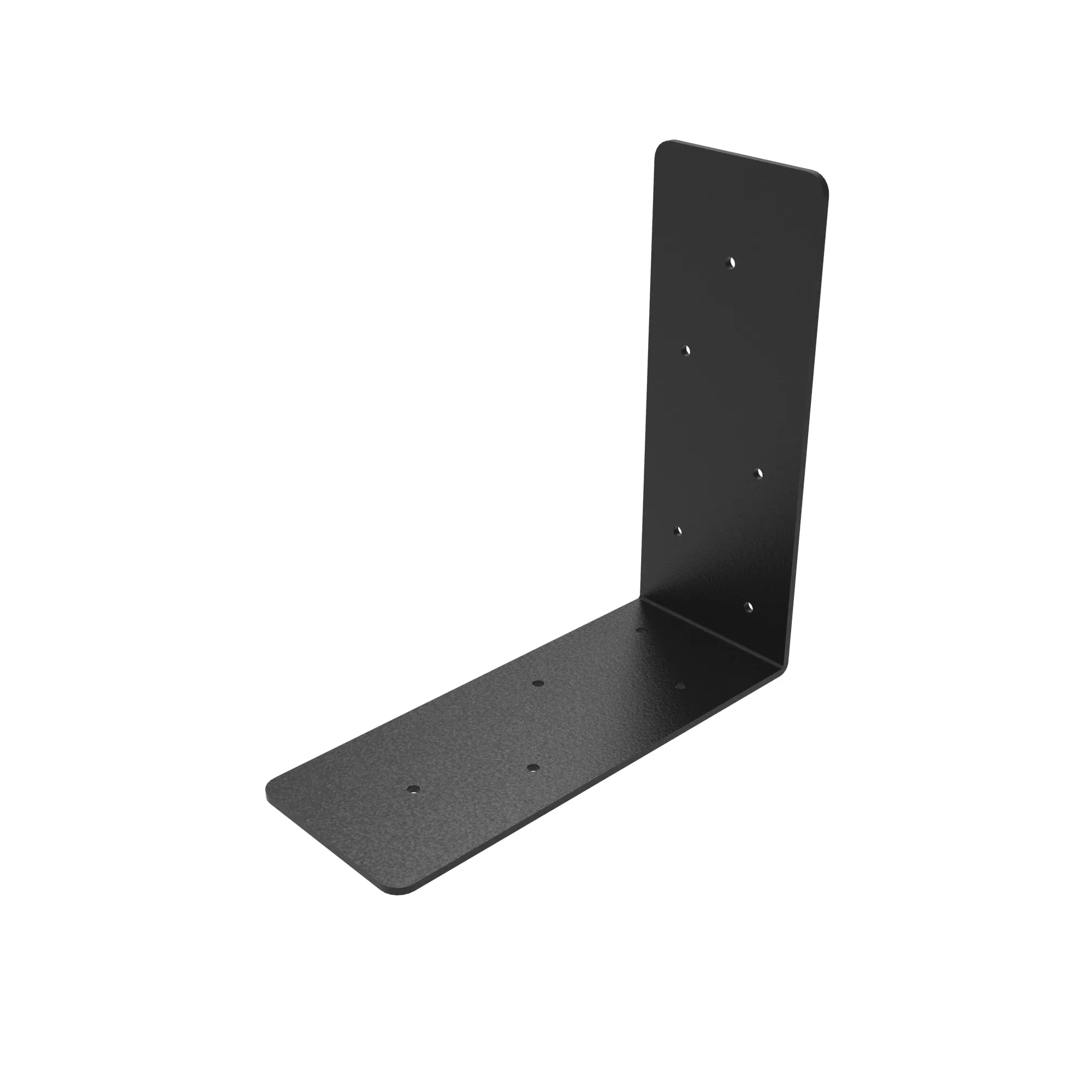

NEW! F30 Bracket

Used primarily for blocking.

F-10 Bracket

Used to secure joist to a drop beam when non-standard spacing is required and as a cap on the bottom of the S-Ledger.

45º Bracket

Used with the Blank S-Ledger when joist extends at an angle.

Single Hanger Bracket

Used to secure joist to flush beam applications.

Double Hanger Bracket

Used to secure double joist or create a double (2"x6") carry beam.

Blocking 12" (305mm) OC / 16" (406mm) OC

Manufactured to match the same spacing as the S-Ledger for easy blocking of the joist on a dropped beam.

Mid-Span Strap 12" (305mm) OC / 16" (406mm) OC

Manufactured to match the same spacing as the S-Ledger for easy mid-span blocking applications.

NEW! Strap 8" (203mm)

Used to tie framing members together when building stairs.

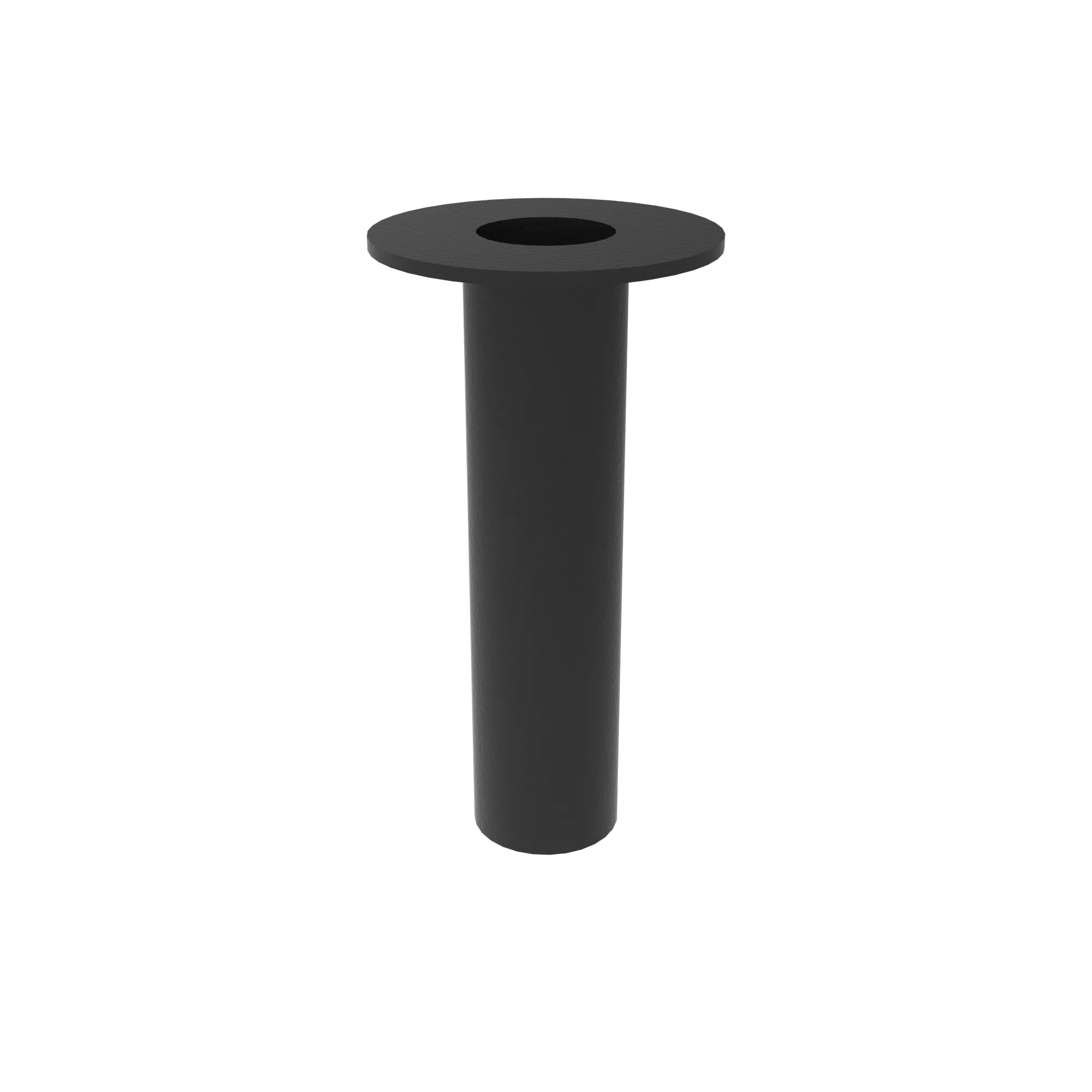

NEW! Spacer Squash Bolt 2” (51mm)

Used when thru-bolting into joists and beams.

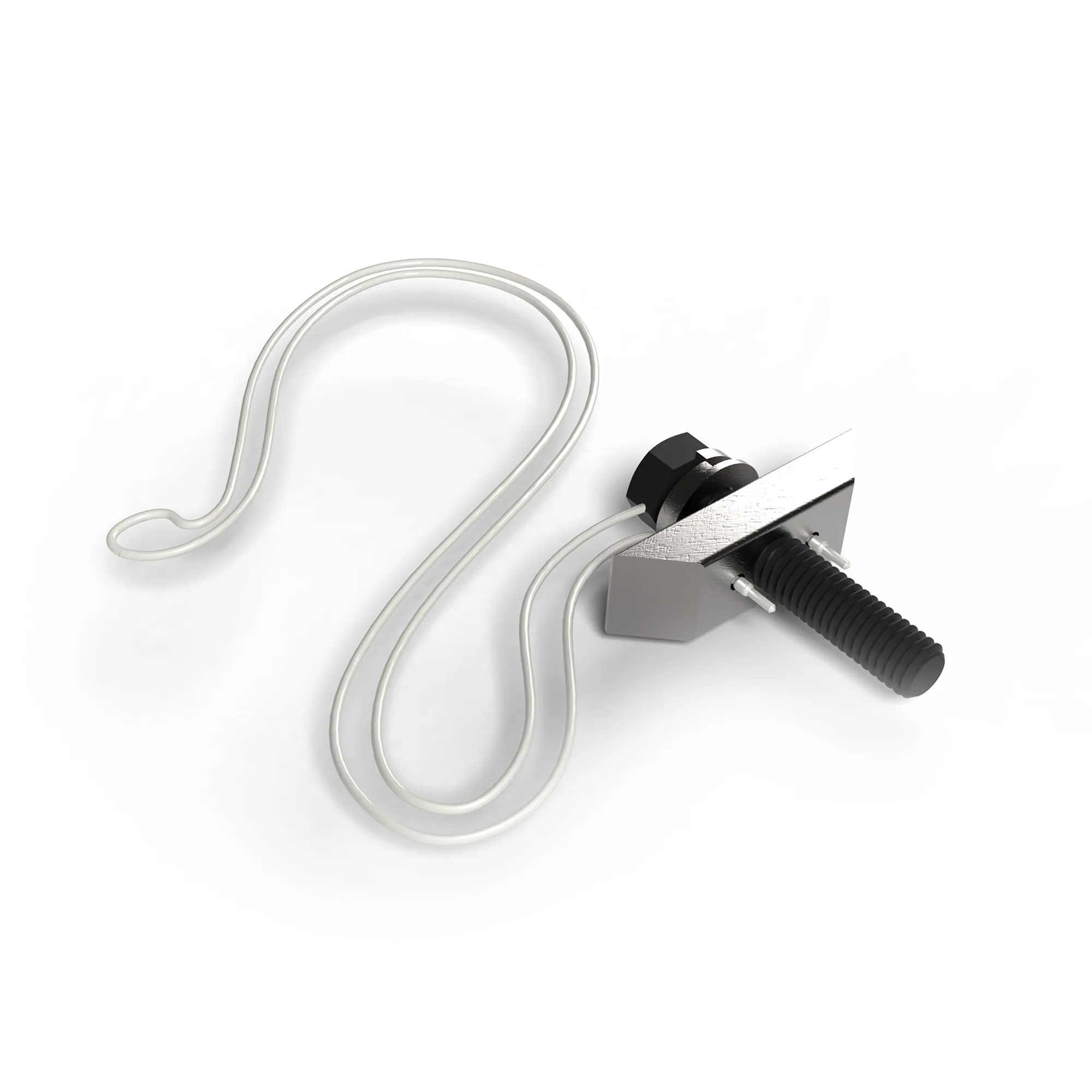

NEW! Toggle Bolt 5/16” (8mm)

Innovative nut and bolt system that makes fastening surface mount posts to steel framing quick and easy.

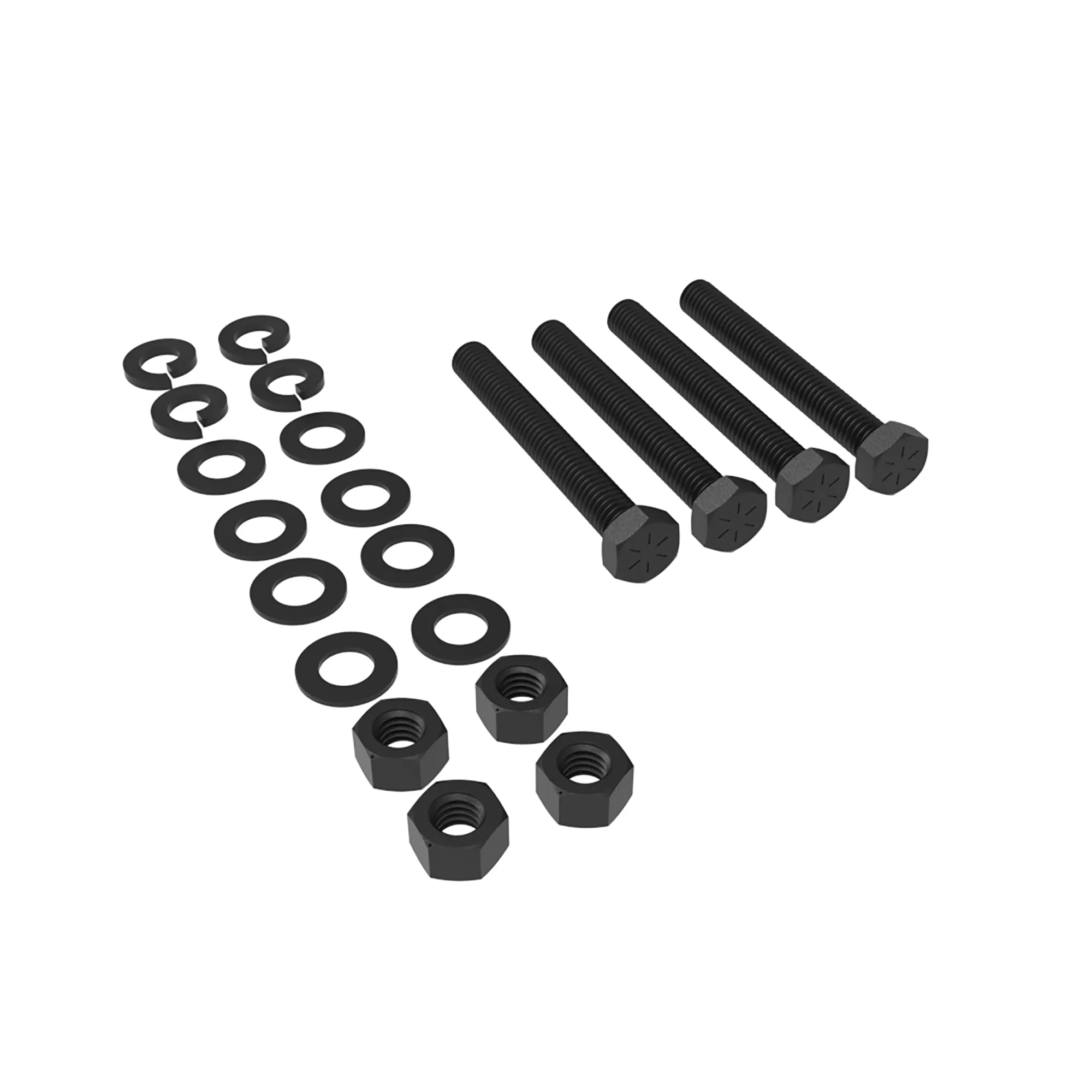

NEW! Bolt Kit 3” (76mm)

Used most often in railing post mounting to stairs. Kit includes bolts, nuts, and washers to mount 1 post.

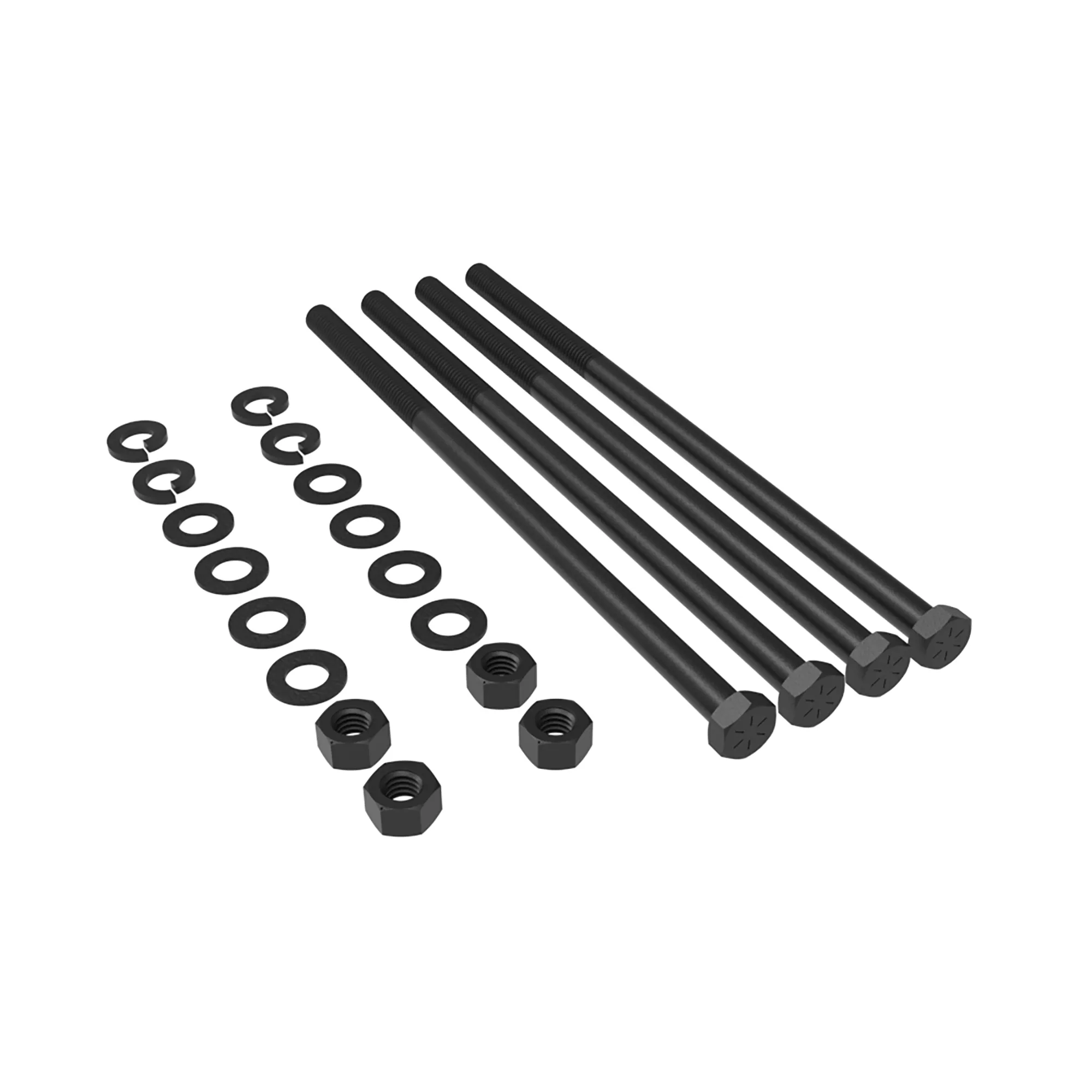

NEW! Bolt Kit 9” (229mm)

Used to thru-bolt posts to 2x6 joists. Kit includes bolts, nuts, and washers to mount 1 post.

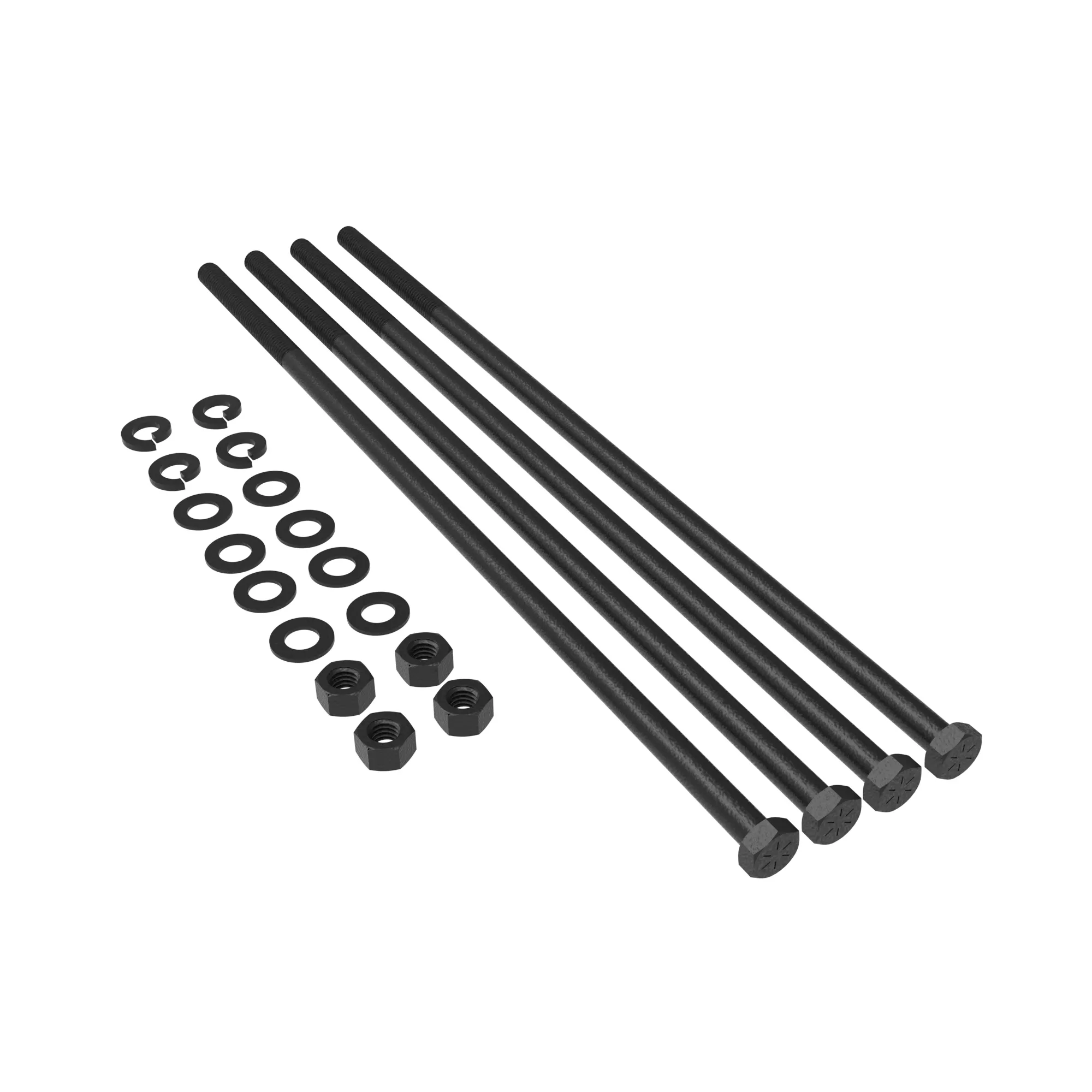

NEW! Bolt Kit 14” (356mm)

Used to thru-bolt posts to 2x11 beams. Kit includes bolts, nuts, and washers to mount 1 post.

Self-Drilling Screw 3/4" (19mm)

Black self-drilling metal screw.

Black Sand Aerosol Touch Up Paint

Color matching paint for powder-coated Evolution parts. Use to touch up any imperfections as well as covering and protecting cut ends.

Visit the Sales Sheet for more details as well as custom options.

Black Sand

Evolution Case Studies

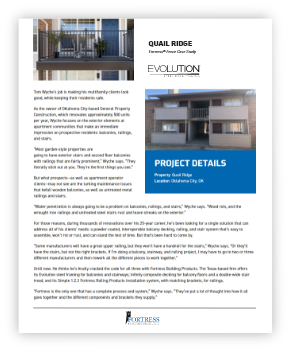

Quail Ridge

Check out how our Evolution Steel Deck framing supports this multifamily project with an innovative solution that lasts longer and is easier to install.

View the Case Study

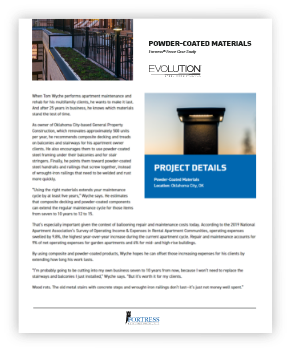

Powder-Coated Materials

Read how Evolution Steel Deck framing from Fortress® challenges the way decks are built, giving these apartments a low-maintenance, durable, safe solution.

View the Case Study

Building Stronger with Evolution Framing

Products
Play Video

Introduction to Steel Deck Framing | Webinar Course Training

Training
Play Video

Evolution Framing Installation

Installation
Play Video

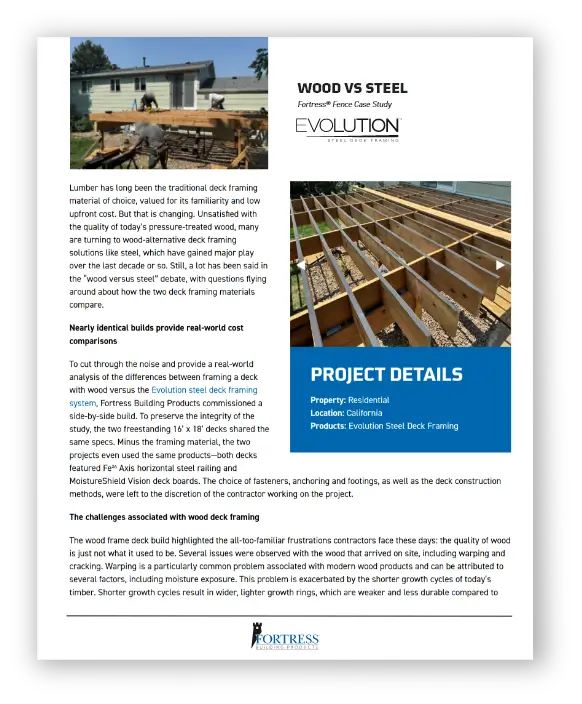

Framing: Wood vs Steel

Products
Play Video

Fortress Building Products Framing

Products
Play Video

Resources & Downloads

  • Warranty
  • Literature
  • Installation Guides
  • Stair Calculator
  • Technical Reports

You're Covered

Historically, fortresses were built to protect. The same is true of Fortress Building Products. You can expect coverage the second you decide to embark on your journey with us. We cover our products and the people who buy them. At Fortress, we don’t just stand behind our work ... we stand by your side.

Go To Warranty

Read All About It

Check out our beautiful, informative literature to learn all about our framing products. Be briefed by brochures, stirred by sales sheets, captivated by catalogs and motivated by other marketing elements.

Go To Sales Sheet

READY, SET, GO

Installing Fortress® products correctly will ensure that you or your customers start off on the right foot. Download our comprehensive, step-by-step guides as a jumping-off point.

Go To Installation Guides

Fortress Stair Calculator

After entering a few parameters, the calculator will walk you through all the steps required to assemble a stair stringer using Fortress’ Evolution Steel Stair System.

Go To Stair Calculator

STAMP OF APPROVAL

Looking for certified engineering plans for permit? Purchase a Technical Evaluation Report for Fortress Framing stamped by a Professional Engineer.
