Lightweight Quick Install
Adjustable Hidden Fasteners
Stands Up to Coastal Weather

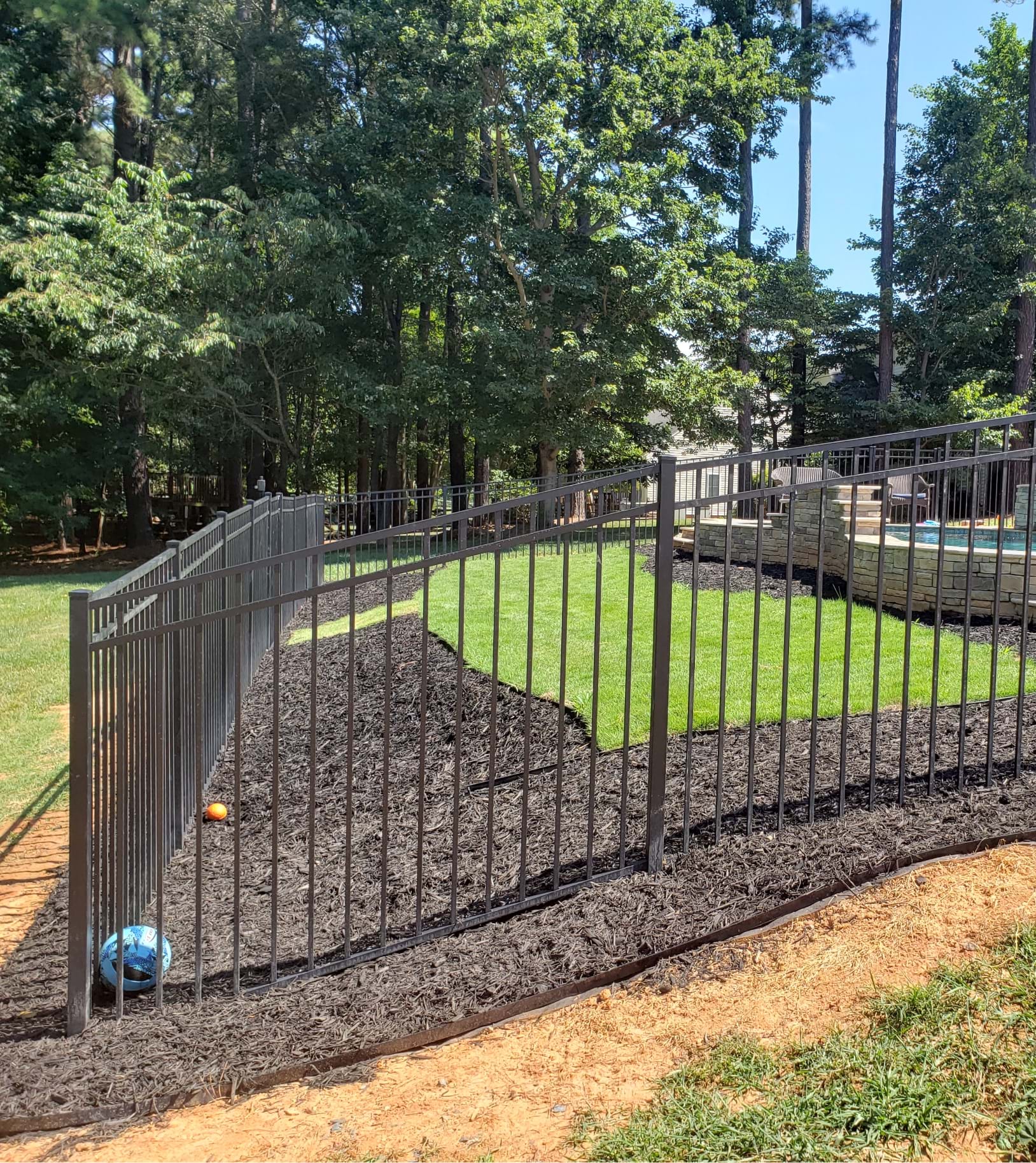

Athens Fencing Key Features

Key Features

  • Hidden fastener system provides a clean, flowing appearance
  • Peace of mind with FortressLock coating process and lifetime limited warranty
  • Fully rackable panels match up to 10 degrees of grade change
  • Gloss Black (traditional shine) and Black Sand (modern matte) finishes available
  • 8 panel styles to choose from in 2 & 3 rail configurations
  • Easy installation with 2" & 2.5" pre-punched posts
  • Multiple panel configurations to meet ICC Pool Code
  • Poly-Loc clip secures rails into post with ease and will not rust like metal clips used by all other competitors
  • Internal rail support designed specifically for faster notching
  • Walk, Drive and Arched Gates available in 4', 5', 6' heights
  • Made from extruded 6005-T5 aluminum
  • Virtually no upkeep or maintenance needed with FortressLock rust-free panels
  • Lifetime limited warranty maximizes your investment

Try our interactive
visualizer tool!

Explore Now

Download the
Sales Sheet

Check it Out

Download the
Product Guide

See It All

Visit the Sales Sheet for more details, as well as custom options.
Rail: 1" (25mm)
Picket: 5/8" (16mm)
Gate Upright: 1.5" (38mm)
Air Space: 3-7/8" (98mm)
Rackability: 12-3/8" (314mm)

Flat Top 2 + 3 Rails - 71” (1803mm)

Heights:
36"* (914mm)
42"* (1067mm)
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Flat Top / Flat Bottom 2 + 3 Rails - 71” (1803mm)

Heights:
36"* (914mm)
42"* (1067mm)
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Extended Picket 2 + 3 Rails - 71” (1803mm)

Heights:
36"* (914mm)
42"* (1067mm)
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Extended Picket / Flat Bottom 2 + 3 Rails - 71” (1803mm)

Heights:
36"* (914mm)
42"* (1067mm)
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Pressed Spear 2 + 3 Rails - 71” (1803mm)

Heights:
36"* (914mm)
42"* (1067mm)
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Pressed Spear / Flat Bottom 2 + 3 Rails - 71” (1803mm)

Heights:
36"* (914mm)
42"* (1067mm)
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Pressed Spear / Flat Top 3 Rail Only - 71” (1803mm)

Heights:
36" (914mm)
42" (1067mm)
48" (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60" (1524mm) ICC Pool Code Icon
72" (1829mm) ICC Pool Code Icon

Certain panel configurations will meet ICC Pool Code.

Pressed Spear / Flat Top / Flat Bottom 3 Rail Only - 71” (1803mm)

Heights:
36" (914mm)
42" (1067mm)
48" (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60" (1524mm) ICC Pool Code Icon
72" (1829mm) ICC Pool Code Icon

Certain panel configurations will meet ICC Pool Code.

ICC Pool Code Icon MEETS ICC POOL CODE. Always Consult Local Code Requirements.

Visit the Sales Sheet for more details, as well as custom options.

Punched Posts - 2” (51mm) and 2.5” (64mm)

Heights:
60" (1524mm)
66" (1676mm)
72" (1829mm)
78" (1981mm)
84" (2134mm)
96" (2439mm)

.060" & .125" wall available

Pressed Dome Cap

Heights:
1.5" (38mm)
2" (50mm)
2.5" (63mm)

Wall Mount Bracket

Post Base Adapter

Nylon Cap

Heights:
1.5" (38mm)
2" (50mm)
2.5" (63mm)

Swivel Bracket

Gate Latch & Hinge Kit

Visit the Sales Sheet for more details, as well as custom options.

Walk Gate - Flat

Widths:
4' - 48" (1219mm)
5' - 60" (1524mm)

Walk Gate - Arched

Widths:
4' - 48" (1219mm)
5' - 60" (1524mm)

Drive Gate - Flat

Widths:
6' - 72" (1819mm)

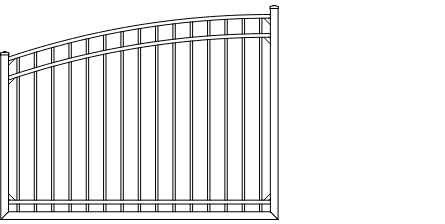

Drive Gate - Arched

Widths:
6' - 72" (1819mm)

Visit the Sales Sheet for more details, as well as custom options.

Gloss Black

Black Sand
