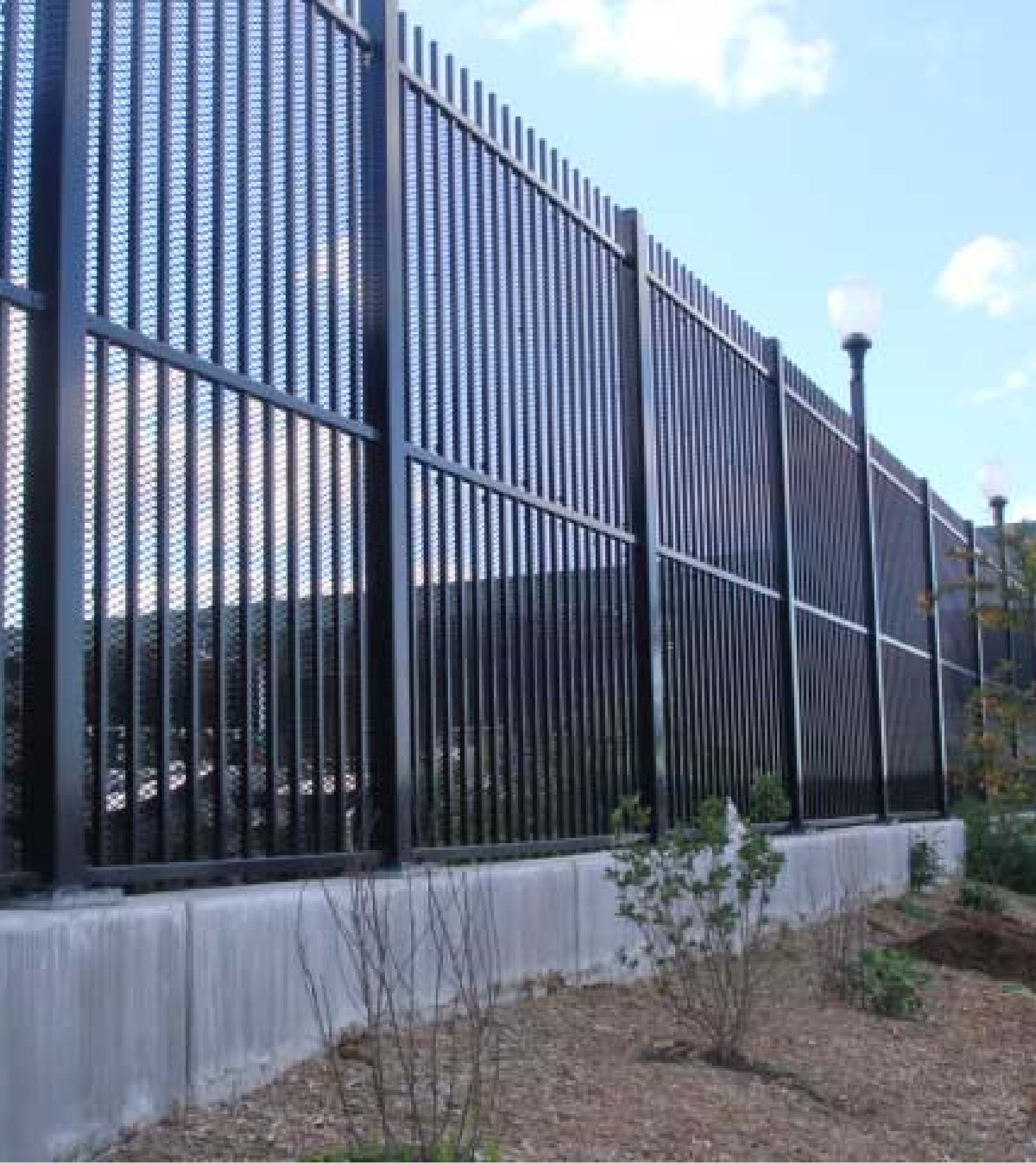

Titan Architectural Fencing Key Features

Key Features

  • Patented slide lock rail system constructed of 45,000 lb. steel
  • Rackable design easily adjusts 24″ on an 8′ panel to match terrain
  • The Slide Lock Technology won’t compromise the FortressShield coating
  • Assembled panels can support a 680 lb. load without permanent deformation
  • Fully pre-assembled for faster installations
  • Highly customizable, with options such as flat top, flat top/flat bottom, extended picket, pressed spear and curved top
  • Peace of mind with a FortressShield 20-year limited manufacturer warranty
  • Available in heights up to 15'

Suitable For Commercial and Industrial Projects

  • Complete selection of 2 rail and 3 rail versions

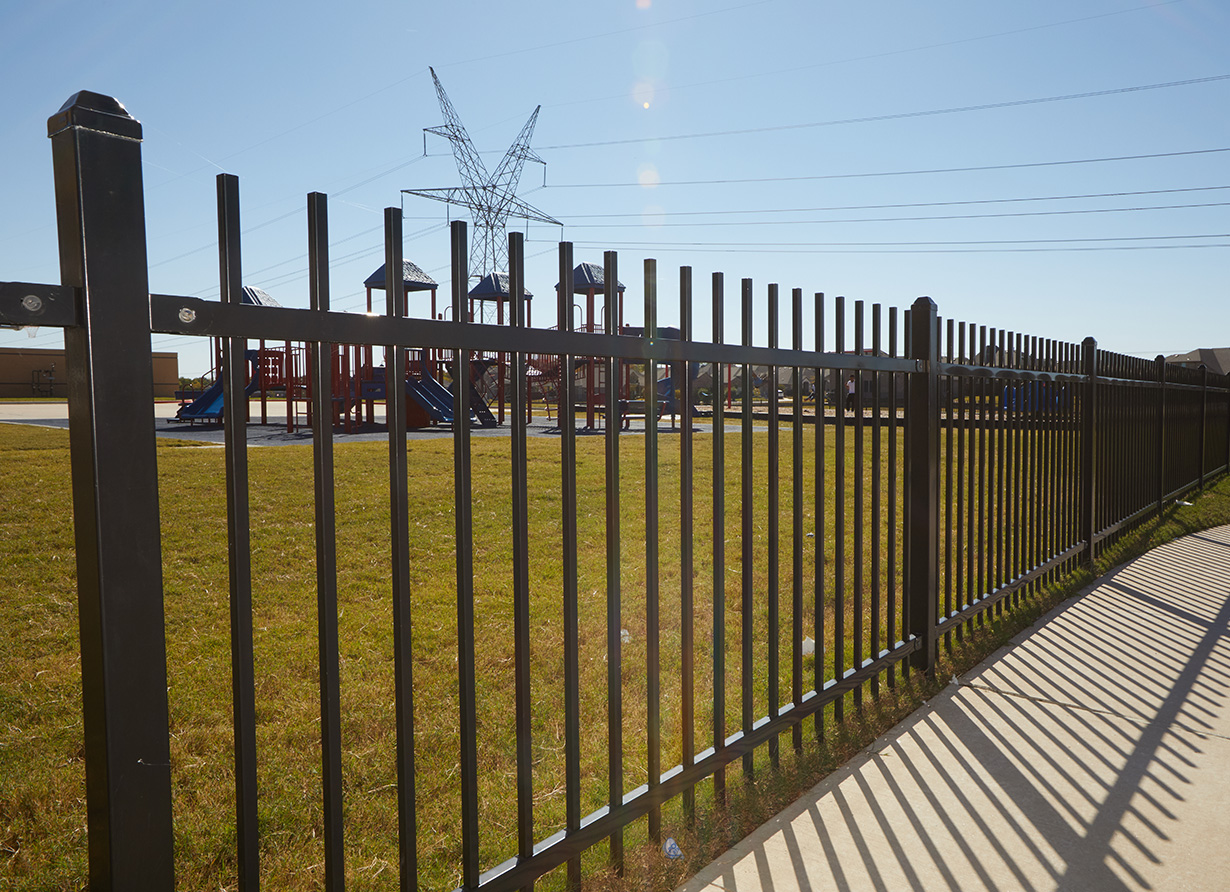

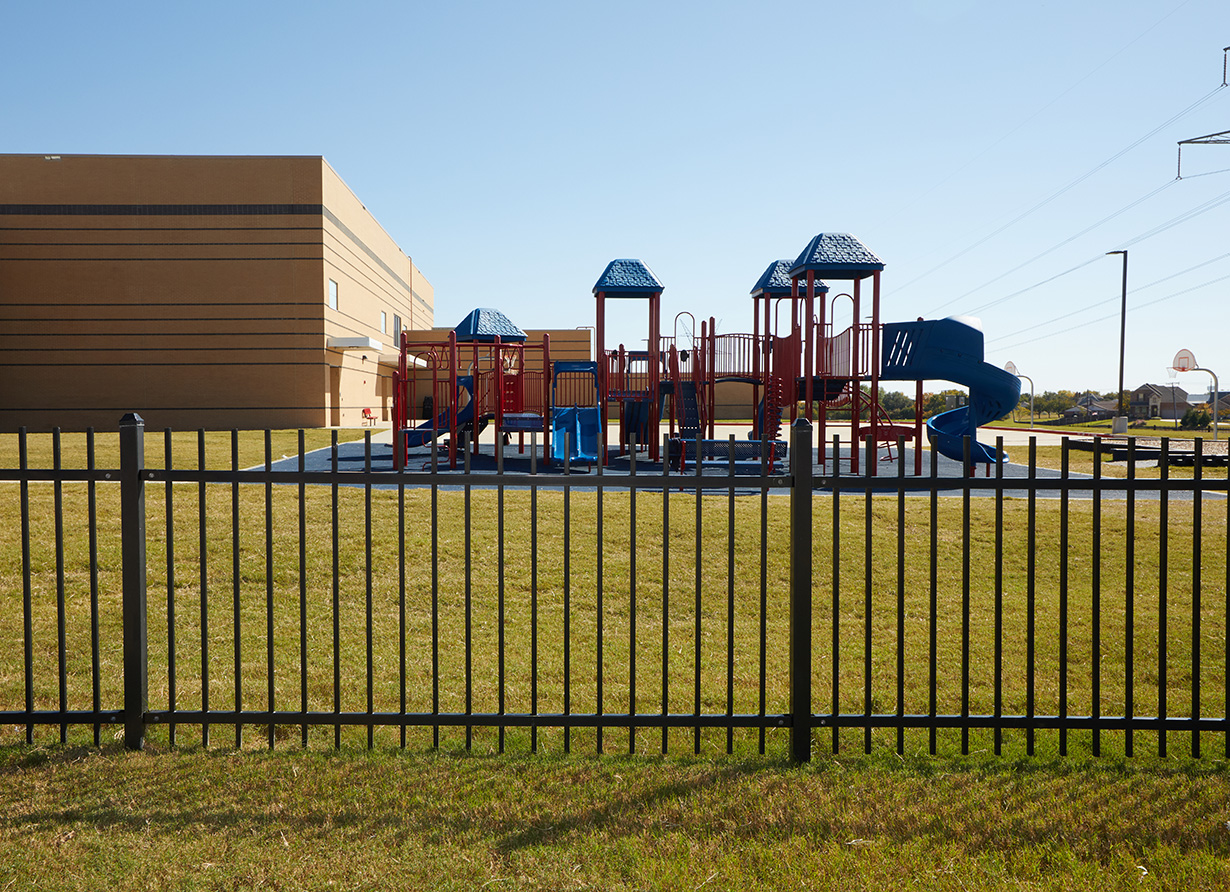

  • Available heights range from 46" to 180". Custom widths are also available. Titan Architectural is applicable for projects such as version suitable schools, public housing, public pools, apartment complexes, churches and restaurants.
  • Industrial version suitable for projects such as energy plants, water treatment facilities, stadiums, universities and hospitals

Titan Architectural Gates

Fortress® can design and build a custom gate to your specifications in a broad range of premium finishes.

Try our interactive
visualizer tool!

Explore Now

Download the
Sales Sheet

Check it Out

Download the
Product Guide

See It All

Visit the Sales Sheet for more details, as well as custom options.
Rail: 1-3/4" (44mm) x 1-3/4" (44mm) (14 ga)
Picket: 1" (25mm)(14ga)
Air Space: 3-15/16" (100mm)
Rackability: 12" (305mm)

Flat Top Three Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

Flat Top Two Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

Flat Top / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

Flat Top / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

Pressed Spear Three Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

Pressed Spear Two Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon

Pressed Spear / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

Pressed Spear / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon

Extended Picket Three Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

Extended Picket Two Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon

Extended Picket / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
40" (1016mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

Extended Picket / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

Curved Top Three Rail Panels - 90.5" (2299mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

Curved Top Two Rail Panels - 90.5" (2299mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

ICC Pool Code Icon MEETS ICC POOL CODE. Always Consult Local Code Requirements.

Visit the Sales Sheet for more details, as well as custom options.

Plated Post - 2.5" (63mm) (14ga)

Heights:
38" (965mm)
44" (1117mm)
58" (1473mm)
62" (1574mm)
74" (1880mm)

Post - 2.5" (63mm) (16ga, 14ga, 12ga)

Heights:
72" (1828mm)
84" (2133mm)
96" (2438mm)
108" (2473mm)
120" (3048mm)
132" (3352mm)

Post - 3" (75mm) (14ga, 12ga)

Heights:
72" (1828mm)
84" (2133mm)
96" (2438mm)
108" (2473mm)
120" (3048mm)
132" (3352mm)
144" (3657mm)

Post - 4" (100mm) (11ga)

Heights:
72" (1828mm)
84" (2133mm)
96" (2438mm)
108" (2473mm)
120" (3048mm)
130" (3302mm)
144" (3657mm)
156" (3962mm)

Nylon Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)

Pressed Dome Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)
4" (102mm)
6" (152mm)

Ball Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)

Curved Top Corner Post Cap

Sizes:
2.5" (63mm)
3" (75mm)

Curved Top Pressed Spear Arch Topper

Sizes:
2.5" (63mm)
3" (75mm)

Ext. One Dir. (EX-107)

Ext. Two Dir. (EX-207)

Ext. Three Dir. (EX-307)

Swivel (EXS-107)

Pro Series Hinge

Pro Series Fork Latch

Pro Series Drop Rod

Pro Series Slide Latch

Visit the Sales Sheet for more details, as well as custom options.

Flat Top Three Rail Gate

Flat Top Two Rail Gate

Flat Top / Flat Bottom Three Rail Gate

Flat Top / Flat Bottom Two Rail Gate

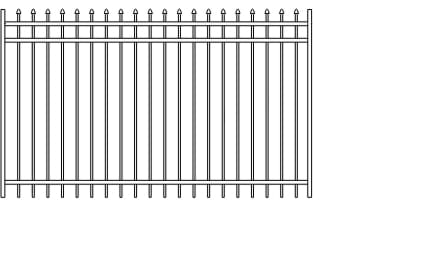

Pressed Spear Three Rail Gates

Pressed Spear Two Rail Gates

Pressed Spear / Flat Bottom Three Rail Gates

Pressed Spear / Flat Bottom Two Rail Gates

Extended Picket Three Rail Gates

Extended Picket Two Rail Gates

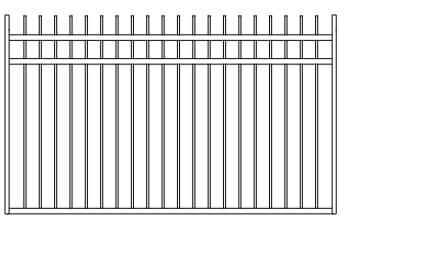

Extended Picket / Flat Bottom Three Rail Gates

Extended Picket / Flat Bottom Two Rail Gates

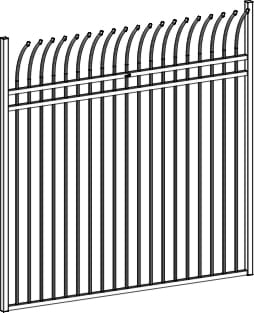

Curved Top Three Rail Gates

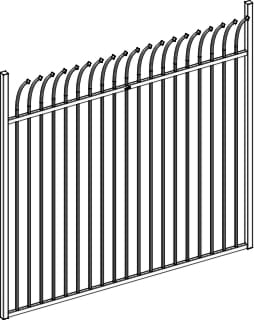

Curved Top Two Rail Gates

Gloss Black (Optional)

Black Sand (Standard)

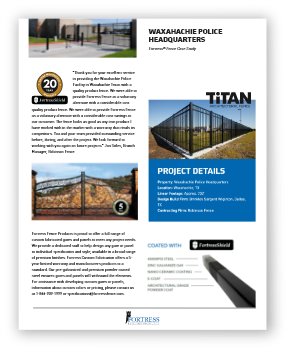

Titan Architectural Case Study

Waxahachie Police Headquarters

Learn more about how Titan Architectural Industrial Steel Fencing from Fortress® helps to protect the new facility of those who protect and serve.

View the Case Study
