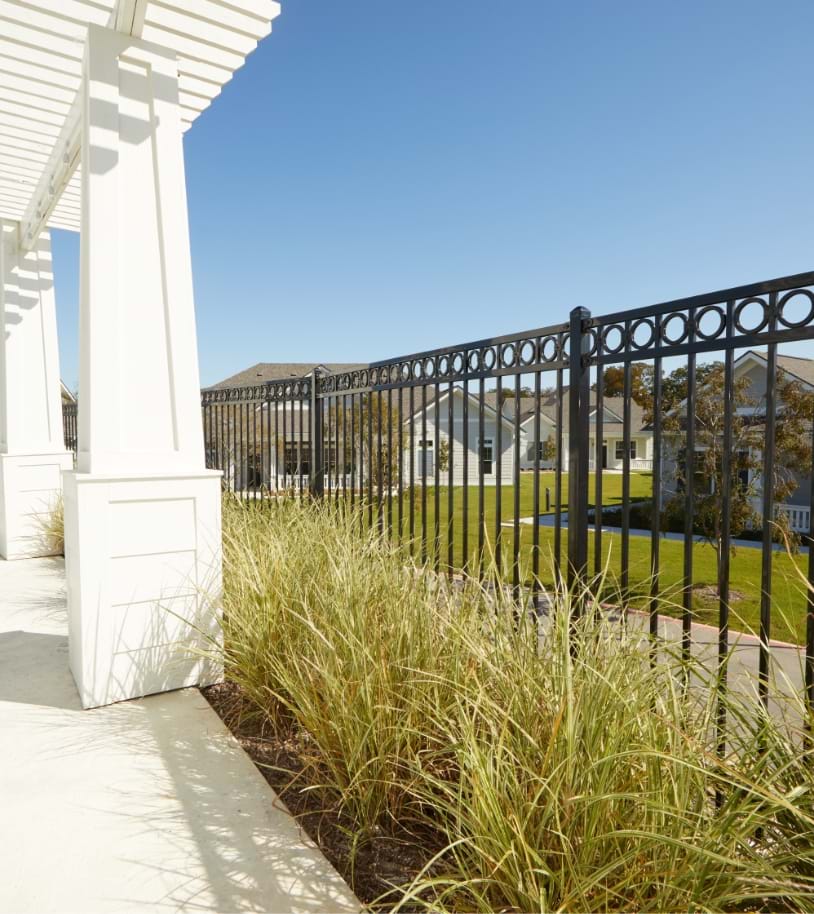

Versai Fencing Key Features

Key Features

  • Patented* Pin-Hinge Technology allows rackability without metal on metal, ensuring no metal fatigue or compromising of the powder coat
  • Racking won’t compromise the FortressShield coating
  • Rackable design easily adjusts 48″ on an 8′ panel to match terrain
  • Patented* hidden pin-hinge system means no visible fasteners
  • Flat top, flat top/flat bottom, extended picket, pressed spear, extended picket/flat bottom, pressed spear/flat bottom and pool panels
  • Enhance your fence with accessories such as finials, knuckles, ball caps and rings
  • Virtually maintenance-free, thanks to the e-coat and Architectural Grade Powder Coat
  • Simple bracket design speeds installation, which reduces labor cost
  • True 5/8″ picket beats competitors' narrower picket
  • Optional Assurance panels feature a 3” air space for increased safety where young children or pets play
  • Peace of mind with FortressShield 20-year warranty
  • *US Patent No. 8899555, Canadian Patent No. 2,698,715, Australian Patent No. 2008296065, European Patent No. 08799266.5

Versai Gates

Our VERSAI ornamental steel fencing line includes walk and drive gates to match each fence style. We can also design and build a custom gate to your specifications in a broad range of premium finishes. Available gate styles include 4' flat, 4' arched, 5' flat, 5' arched, 6' drive, 8' drive and 8' arched drive.

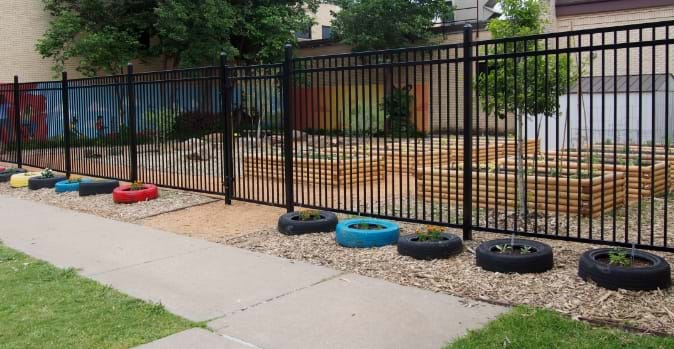

3" Air Space

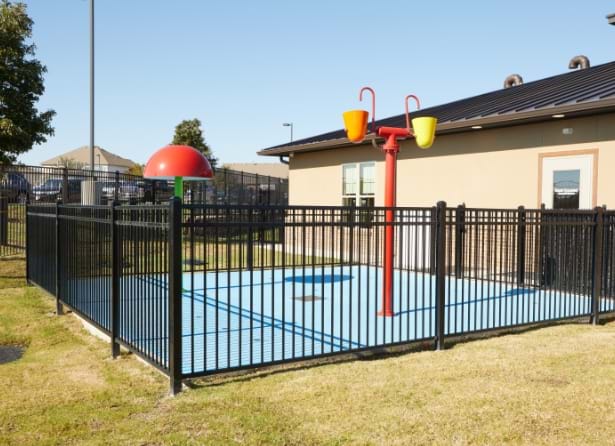

Fortress® ASSURANCE Panels and Gates are perfect for playgrounds, small pet play areas and pools. ASSURANCE is available in VERSAI Residential and Commercial Products. With its 3" air space, rest assured that it’ll protect those most precious to you.

Visit the Sales Sheet for more details, as well as custom options.

Rail: 1” (25mm) x 1-3/16” (30mm) 16ga
Picket: 5/8” (16mm) 18ga
Gate Uprights: 1-1/2” (38mm) 16ga
Air Space: 3-7/8” (98mm)
Rackability: 48" (1219mm)

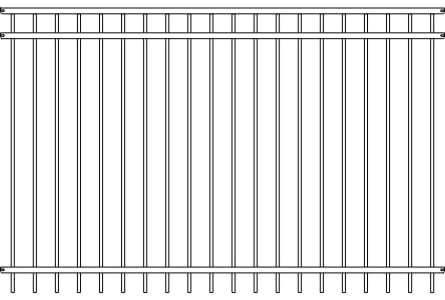

Flat Top Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm)

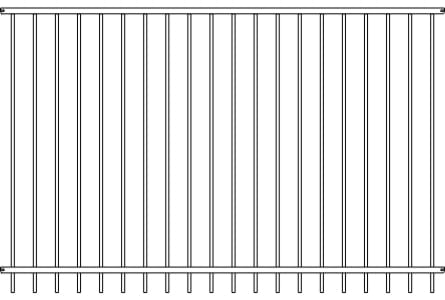

Flat Top Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm)

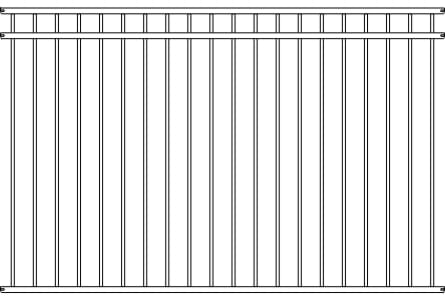

Flat Top / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
54” (1372mm)
58” (1473mm)
70” (1778mm)

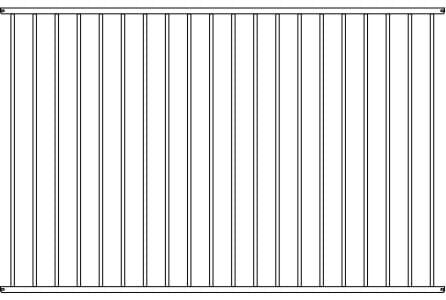

Flat Top / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
48” (1219mm)
58” (1473mm)

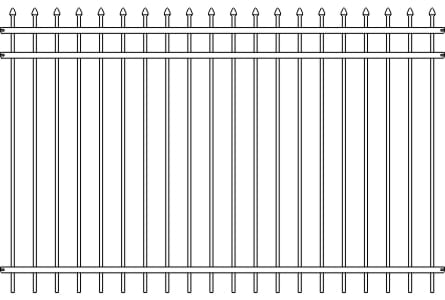

Pressed Spear Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)
70” (1778mm)

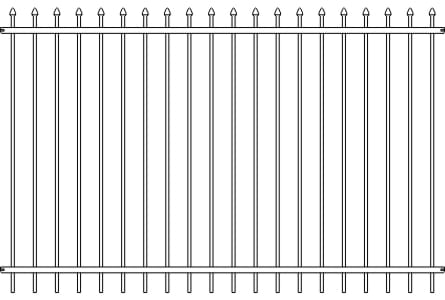

Pressed Spear Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)

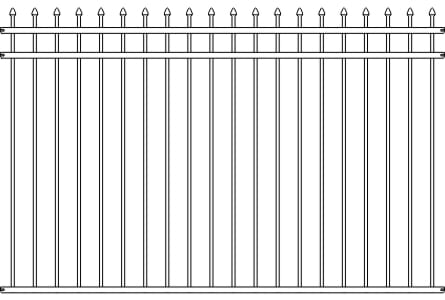

Pressed Spear / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)
70” (1778mm)

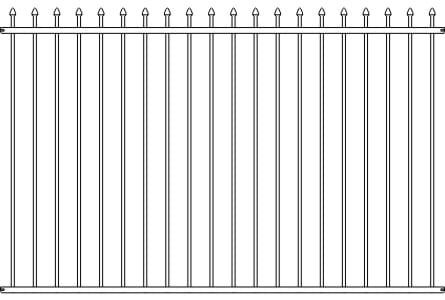

Pressed Spear / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)

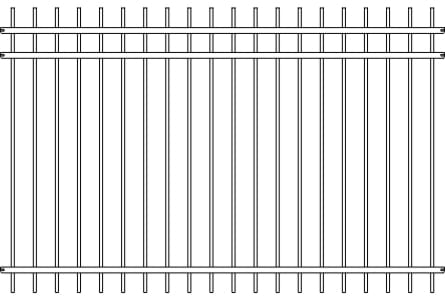

Extended Picket Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)
70” (1778mm)

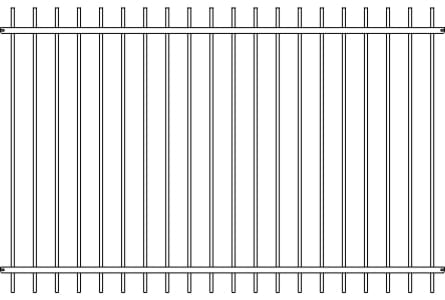

Extended Picket Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)

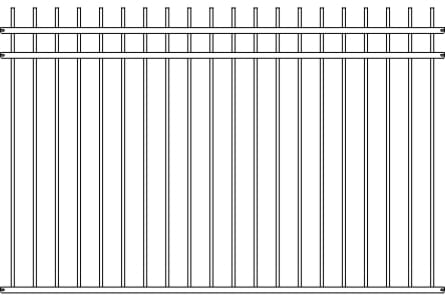

Extended Picket / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)
70” (1778mm)

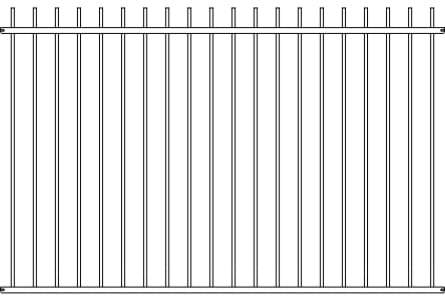

Extended Picket / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm)

Visit the Sales Sheet for more details, as well as custom options.

Post With Base Plate (16ga) - 2" (50mm)

Heights:
52” (1321mm)
58” (1473mm)
64” (1626mm)
74” (1880mm)

With 5" (127mm) Base Plate

Post Without Base (16ga) - 2" (50mm)

Heights:
72” (1829mm)
84” (2134mm)
96” (2438mm)
108” (2743mm)

Base Plate Cover

Nylon Cap

Sizes:
1-1/2" (38mm)
2" (50mm)

Pressed Dome Cap

Sizes:
2" (50mm)

Ball Cap

Sizes:
2" (50mm)

Ext. One Dir. (EX-104)

Ext. Two Dir. (EXW-204)

Ext. Three Dir. (EXW-304)

Omni

Swivel (EXS-104)

Ext. One Dir. (EX-104 96" (2438mm) OC)

Ext. Two Dir. (EX-204 96" (2438mm) OC)

Ext. Three Dir. (EX-304 96" (2438mm) OC)

Residential Hinge

Residential Fork Latch

Sizes:
1-1/2" (38mm) x 2" (50mm)
2" (50mm) x 2" (50mm)

Pro Series Drop Rod

Visit the Sales Sheet for more details, as well as custom options.

COMING FALL 2020 - ALUMINUM FINIALS

Fleur De Lis

Triad

Quad

2pc Knuckle

Rings

Readyset Cement & Grout

Visit the Sales Sheet for more details, as well as custom options.

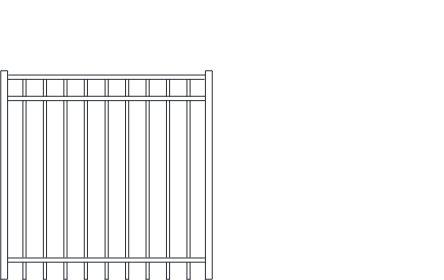

Walk Gate - Flat Top Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

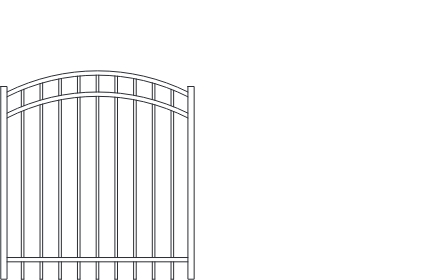

Walk Gate - Flat Top Three Rail Arched

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

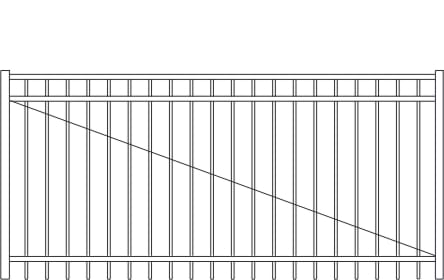

Drive Gate - Flat Top Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

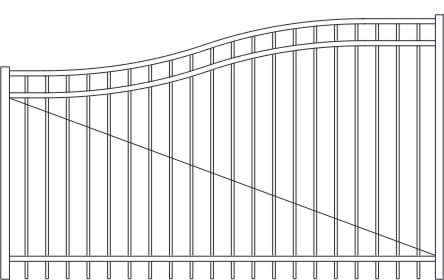

Drive Gate - Flat Top Three Rail Arched

Widths:
8' - 96" (2438mm)

Walk Gate - Flat Top Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Drive Gate - Flat Top Two Rail

Widths:
6' - 72" (1829mm)

Walk Gate - Flat Top / Flat Bottom Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

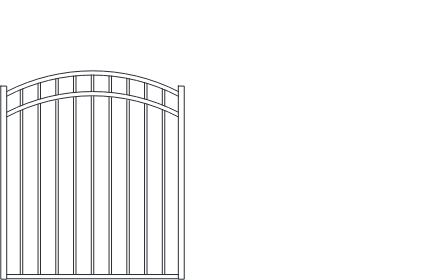

Walk Gate - Flat Top / Flat Bottom Three Rail Arched

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

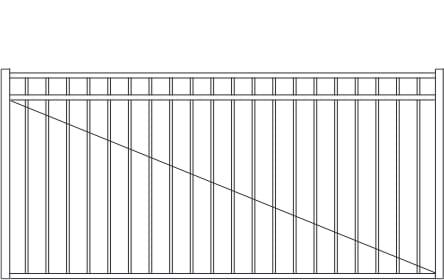

Drive Gate - Flat Top / Flat Bottom Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

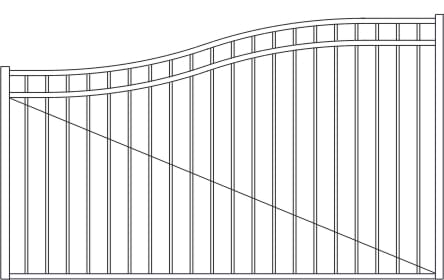

Drive Gate - Flat Top / Flat Bottom Three Rail Arched

Widths:
8’ - 96” (2438mm)

Walk Gate - Flat Top / Flat Bottom Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Drive Gate - Flat Top / Flat Bottom Two Rail

Widths:
6’ - 72” (1829mm)

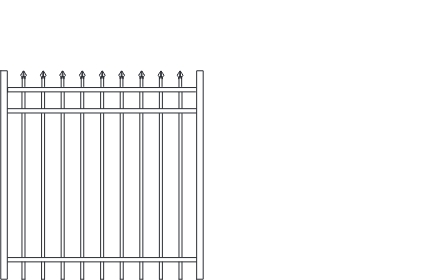

Walk Gate - Pressed Spear Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Walk Gate - Pressed Spear Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Drive Gate - Pressed Spear Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

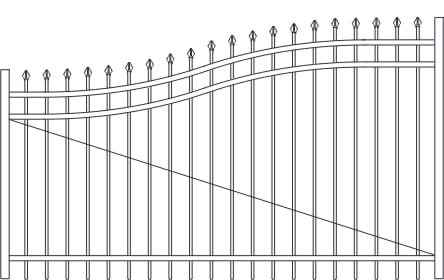

Drive Gate - Pressed Spear Three Rail Arched

Widths:
8’ - 96” (2438mm)

Walk Gate - Pressed Spear Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

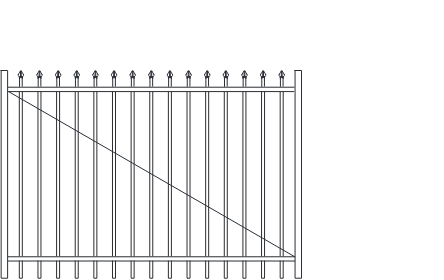

Drive Gate - Pressed Spear Two Rail

Widths:
6’ - 72” (1829mm)

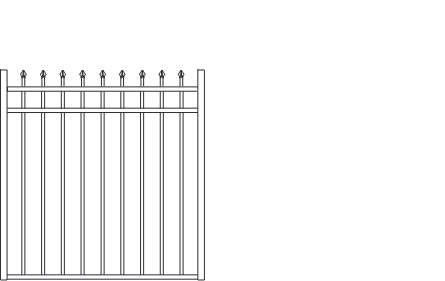

Walk Gate - Pressed Spear / Flat Bottom Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Walk Gate - Pressed Spear / Flat Bottom Three Rail Arched

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

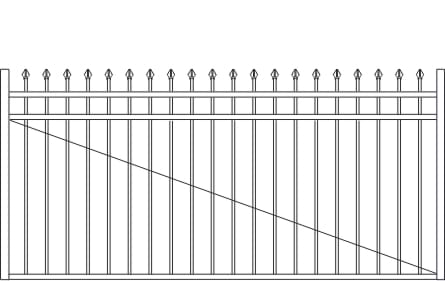

Drive Gate - Pressed Spear / Flat Bottom Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

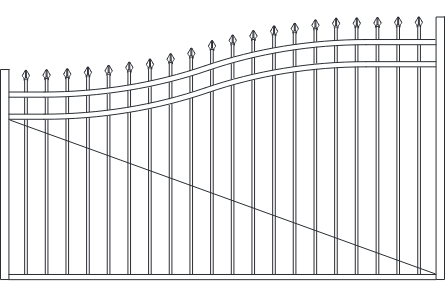

Drive Gate - Pressed Spear Three Rail Arched

Widths:
8’ - 96” (2438mm)

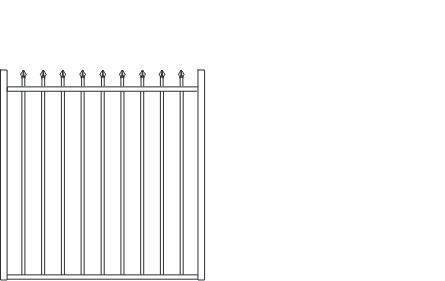

Walk Gate - Pressed Spear / Flat Bottom Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Drive Gate - Pressed Spear / Flat Bottom Two Rail

Widths:
6’ - 72” (1829mm)

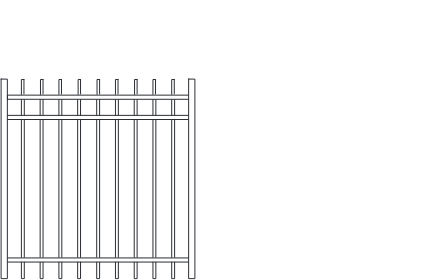

Walk Gate - Extended Picket Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Walk Gate - Extended Picket Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

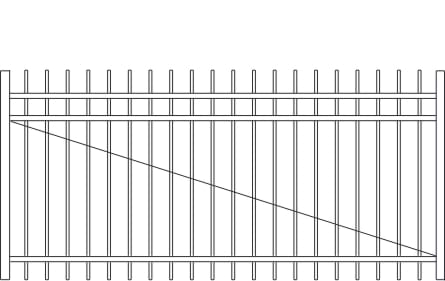

Drive Gate - Extended Picket Three Rail

Widths:
6' - 72" (1829mm)
8' - 96" (2438mm)

Drive Gate - Pressed Spear Three Rail Arched

Widths:
8' - 96" (2438mm)

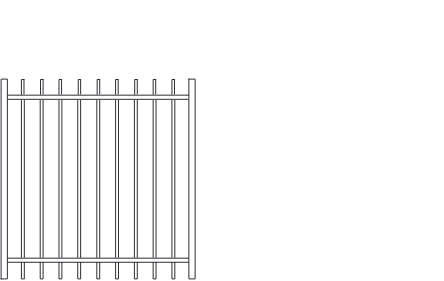

Walk Gate - Extended Picket Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Drive Gate - Extended Picket Two Rail

Widths:
6' - 72" (1829mm)

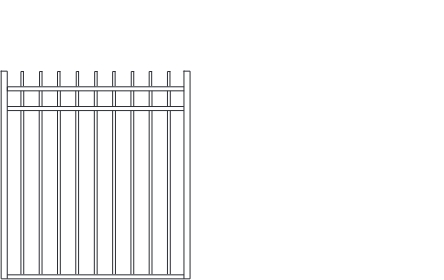

Walk Gate - Extended Picket / Flat Bottom Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

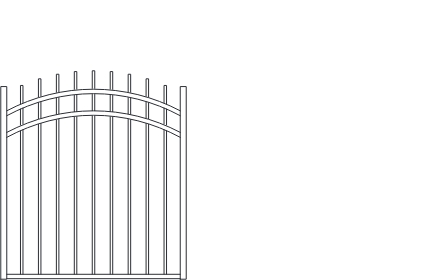

Walk Gate - Extended Picket / Flat Bottom Three Rail Arched

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

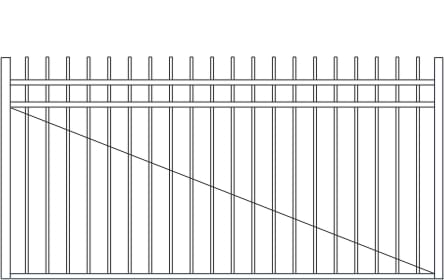

Drive Gate - Extended Picket / Flat Bottom Three Rail

Widths:
6' - 72" (1829mm)
8' - 96" (2438mm)

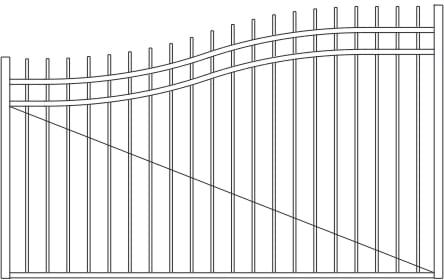

Drive Gate - Extended Picket / Flat Bottom Three Rail Arched

Widths:
8' - 96" (2438mm)

Walk Gate - Extended Picket / Flat Bottom Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5’ - 58-1/2" (1485mm)

Drive Gate - Extended Picket / Flat Bottom Two Rail

Widths:
6' - 72" (1829mm)

Assembled Gate Ell Kit

Gate Uprights - 1.5" (38mm) x 1.5" (38mm)

Heights:
47" (1194mm)
49" (1245mm)
59" (1499mm)
71" (1803mm)

Pressed Dome Cap

Size:
1-1/2" (38mm)

Gate Ell

Black Sand

Gloss Black

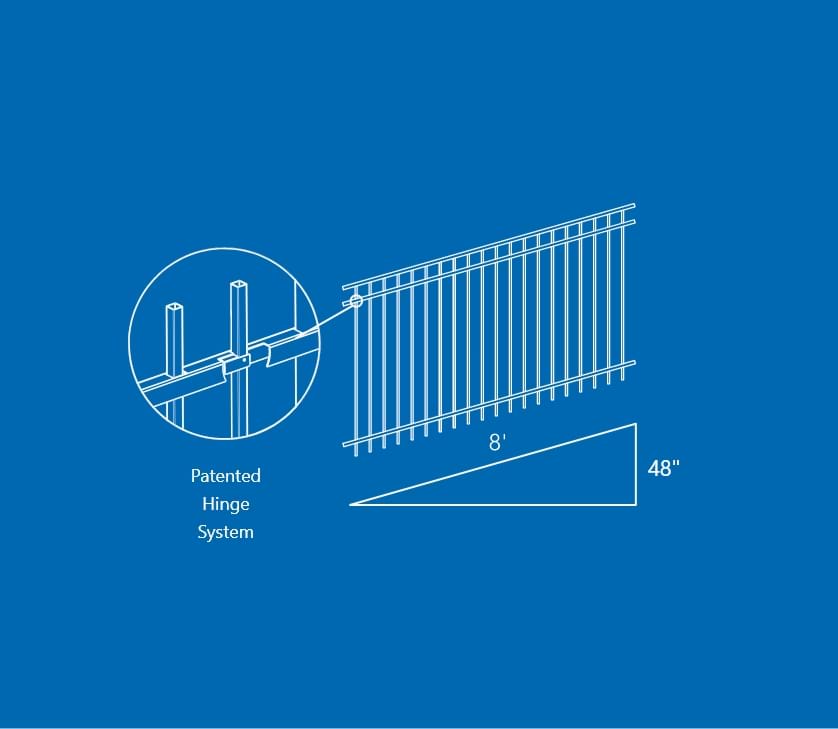

Patented Pin Hinge System

  • Patented hidden pin hinge system means no visible fasteners
  • Pin Hinge is projection welded to rail
  • Adjusts to the most aggressive landscape
Fortress Pin Hinge System
