No Visible Fasteners
Rackable Design
Smooth Rails

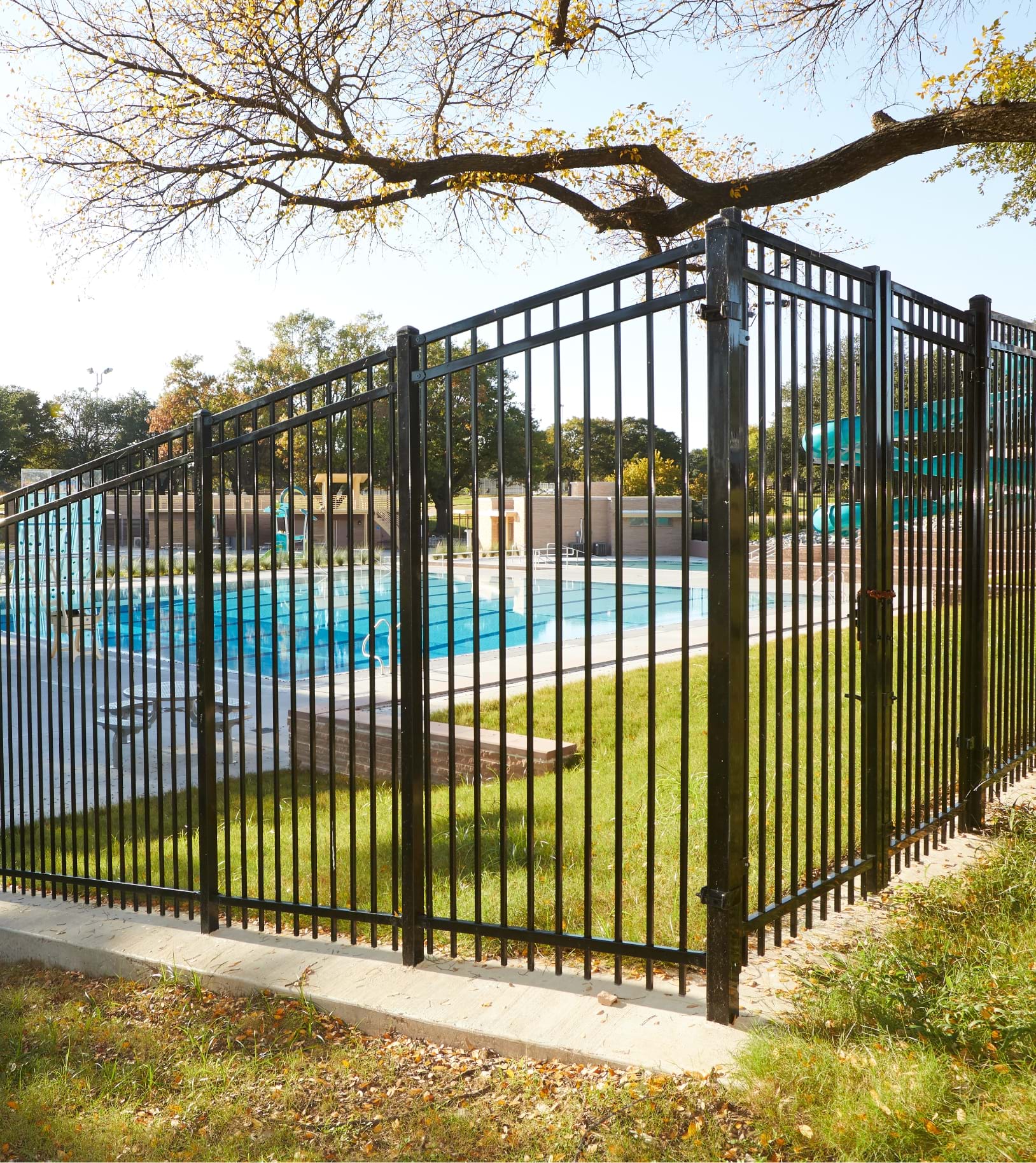

V2 Fencing Key Features

Key Features

  • Patented* Pin-Hinge Technology allows rackability without metal on metal, ensuring no metal fatigue or compromising of the powder coat
  • Racking won’t compromise the FortressShield coating

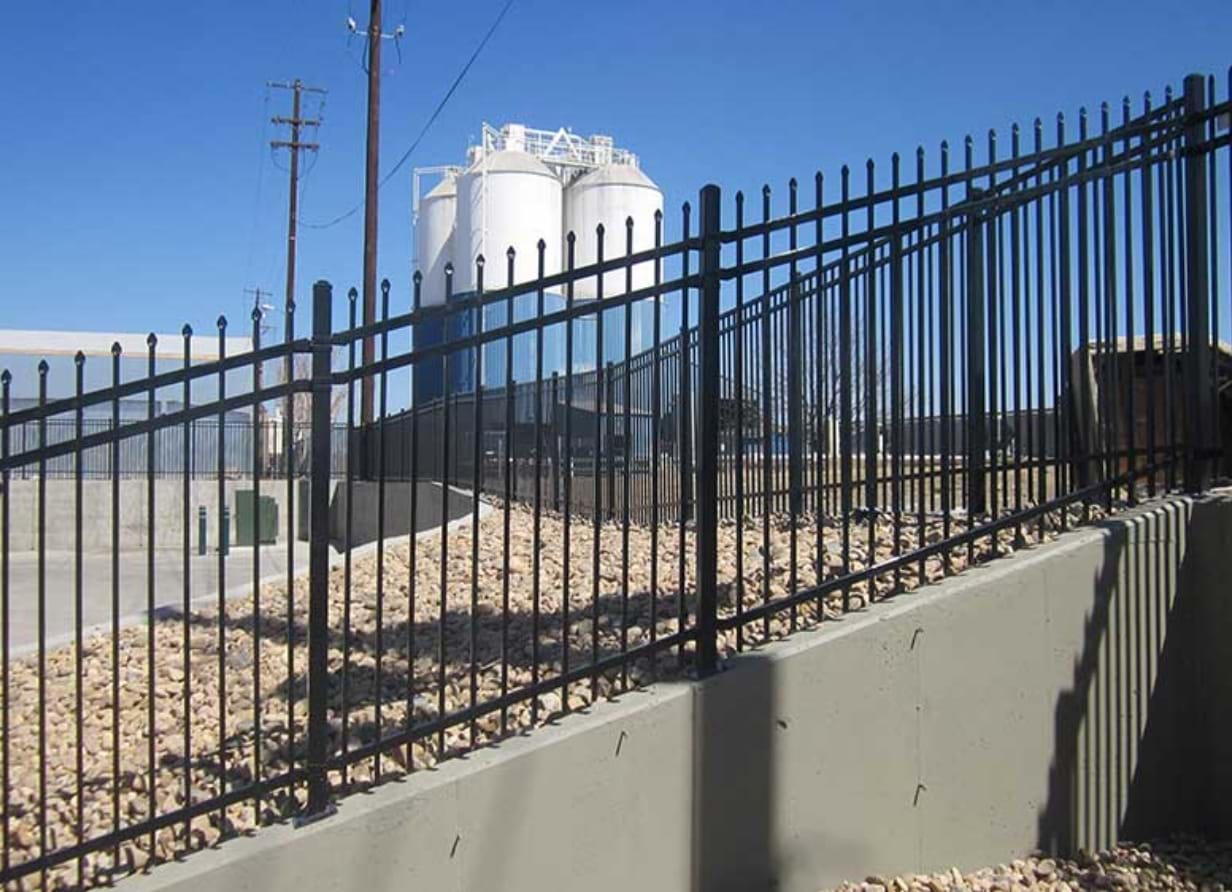

  • Rackable design easily adjusts 30″ on an 8′ panel to match terrain
  • Patented* hidden pin-hinge system means no visible fasteners
  • Highly customizable, with options such as flat top, flat top/flat bottom, extended picket, pressed spear, extended picket/flat bottom, pressed spear/flat bottom and pool panels
  • Enhance your fence with accessories such as finials, knuckles, ball caps and rings
  • Perfectly smooth rails with no unsightly picket-to-rail connection points
  • Virtually maintenance-free, thanks to the FortressShield coating
  • Simple bracket design speeds installation, which reduces labor cost
  • True 3/4″ picket beats competitors' narrower picket
  • Optional Assurance panels feature a 3” air space for increased safety where young children or pets play
  • Peace of mind with a FortressShield 20-year limited manufacturer warranty
  • *US Patent No. 8899555, Canadian Patent No. 2,698,715, Australian Patent No. 2008296065, European Patent No. 08799266.5

V2 Gates

Our V2 commercial ornamental fencing line includes walk and drive gates to match each fence style. We can also design and build a custom gate to your specifications in a broad range of premium finishes. Available gate styles include 4' Flat, 5' Flat, 6' Drive, 8' drive and 8' arched drive.

Try our interactive
visualizer tool!

Explore Now

Download the
Sales Sheet

Check it Out

Download the
Product Guide

See It All

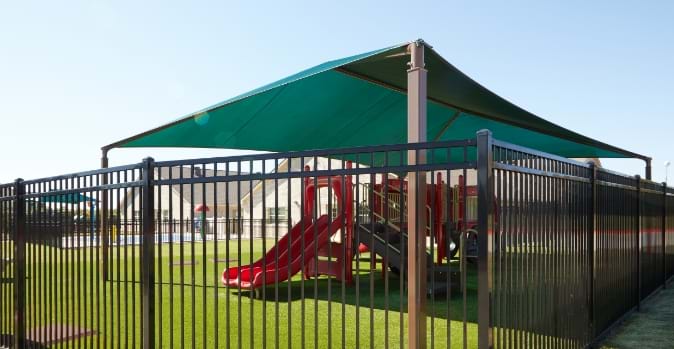

3" Air Space

Fortress® ASSURANCE Panels and Gates are perfect for playgrounds, small pet play areas and pools. ASSURANCE is available in VERSAI Residential and Commercial Products. With its 3" air space, rest assured that it’ll protect those most precious to you.

Visit the Sales Sheet for more details, as well as custom options.
Rail: 1-9/16” (40mm) x 1-3/16” (30mm) 14ga
Picket: 3/4" (19mm)
Gate Uprights: 2” (50mm)
Air Space: 3-15/16” (100mm)
Rackability: 30" (762mm)

Flat Top Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

Flat Top Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

Flat Top / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
54” (1372mm) ICC Pool Code Icon
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

Flat Top / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

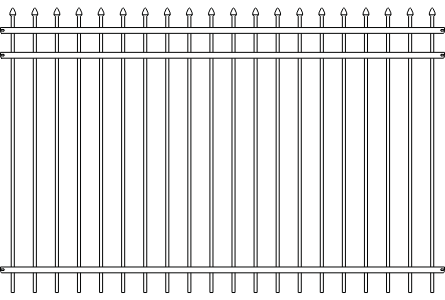

Pressed Spear Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

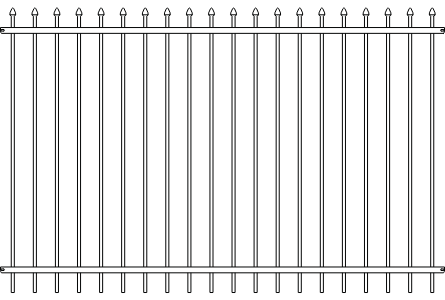

Pressed Spear Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

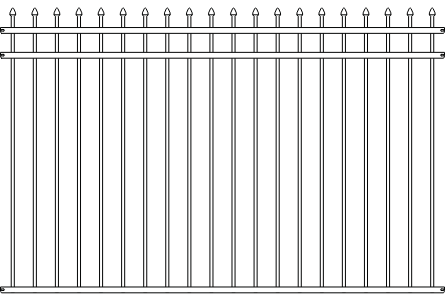

Pressed Spear / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

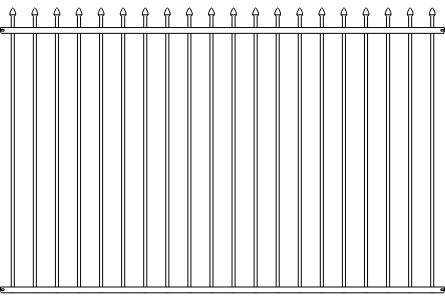

Pressed Spear / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

Extended Picket Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

Extended Picket Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

Extended Picket / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm) ICC Pool Code Icon
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

Extended Picket / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
34” (864mm)
40” (1016mm)
46” (1168mm) ICC Pool Code Icon
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

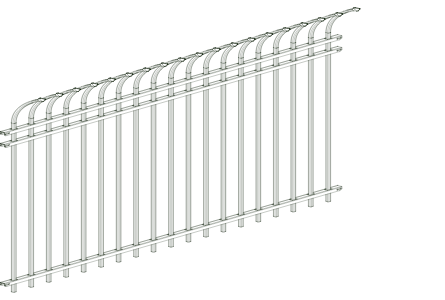

Curved Top Three Rail Panels - 90.5" (2299mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

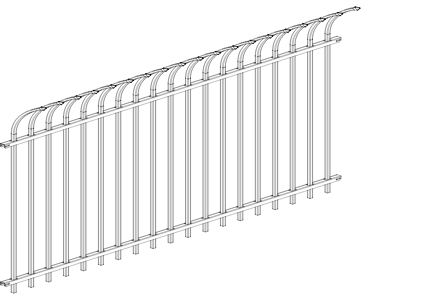

Curved Top Two Rail Panels - 90.5" (2299mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

ICC Pool Code Icon MEETS ICC POOL CODE. Always Consult Local Code Requirements.

Visit the Sales Sheet for more details, as well as custom options.

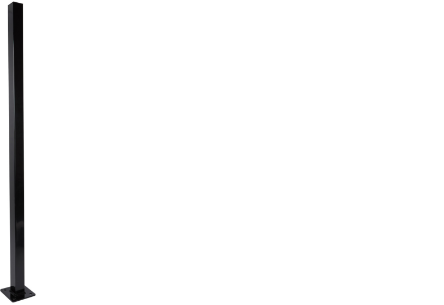

Post With Base Plate (16ga) - 2.5” (63mm)

Heights:
38” (965mm)
44” (1118mm)
58” (1473mm)
62” (1575mm)
74” (1880mm)

With 6” (154mm) Base Plate

Post Without Base (16ga, 14ga, 12ga) - 2.5” (63mm)

Heights:
72” (1829mm) 16ga only
84” (2134mm) 16ga only
96” (2438mm) 16ga only
108” (2743mm)
120” (3048mm)
132” (3353mm)

Post Without Base (14ga, 12ga) - 3” (75mm)

Heights:
72” (1829mm)
84” (2134mm)
96” (2438mm)
108” (2743mm)
120” (3048mm)
132” (3353mm)
144” (3658mm)

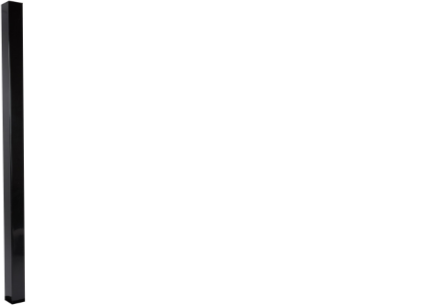

Post Without Base (11ga) - 4” (100mm)

Heights:
72” (1829mm)
84” (2134mm)
96” (2438mm)
108” (2743mm)
120” (3048mm)
132” (3353mm)
144” (3658mm)
156” (3962mm)

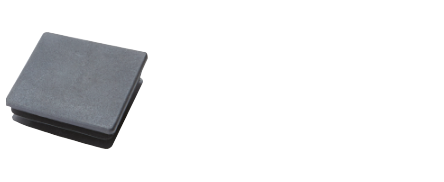

Nylon Cap

Sizes:
3/4" (19mm)
2" (50mm)
2 1/2" (63mm)

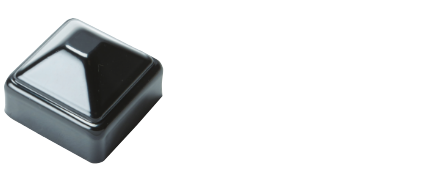

Pressed Dome Cap

Sizes:
2" (50mm)
2 1/2" (63mm)
3" (75mm)
4" (100mm)

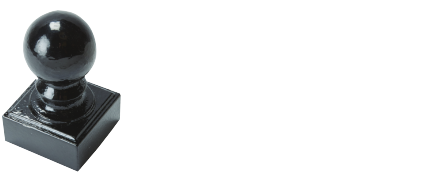

Ball Cap

Sizes:
2.5" (63mm)
3" (75mm)

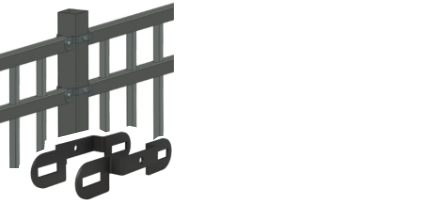

Ext. Two Dir. (EX-206)

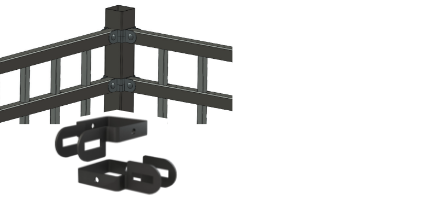

Ext. Three Dir. (EX-306)

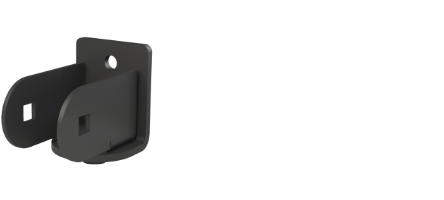

Swivel (EXS-106)

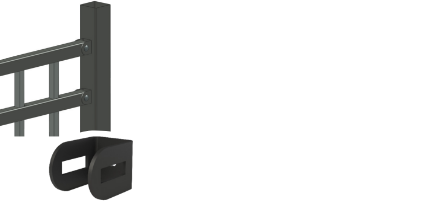

Ext. One Dir. (EX-106)

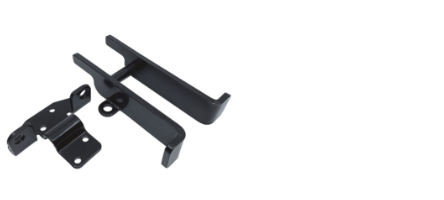

Pro Series Fork Latch

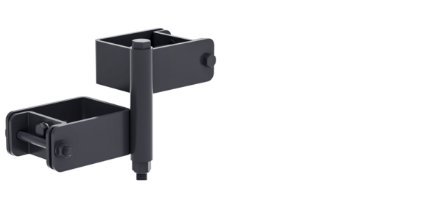

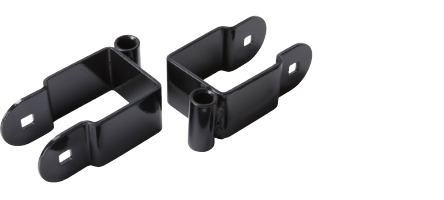

Pro Series Hinge

Pro Series Hinge

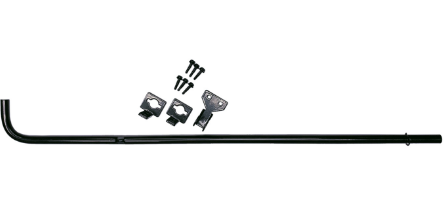

Pro Series Drop Rod

Visit the Sales Sheet for more details, as well as custom options.

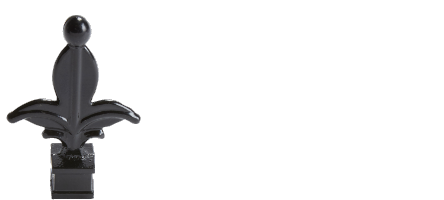

Fleur De Lis

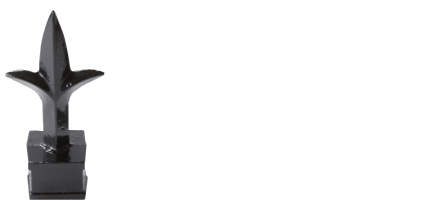

Triad

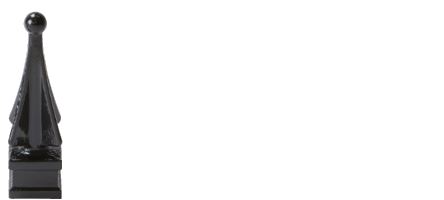

Quad

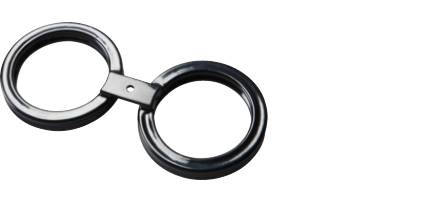

Rings

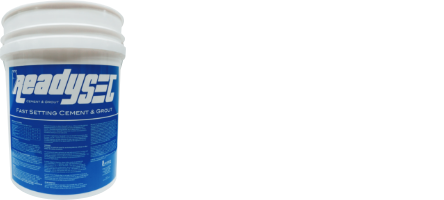

Readyset Cement & Grout

Visit the Sales Sheet for more details, as well as custom options.

Walk Gate - Flat Top Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

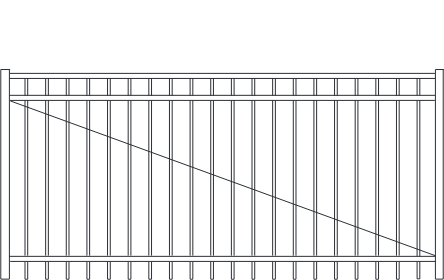

Drive Gate - Flat Top Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

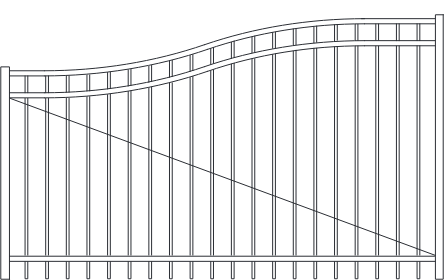

Drive Gate - Flat Top Three Rail Arched

Widths:
8’ - 96” (2438mm)

Walk Gate - Flat Top Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

Drive Gate - Flat Top Two Rail

Widths:
6’ - 72” (1829mm)

Walk Gate - Flat Top / Flat Bottom Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

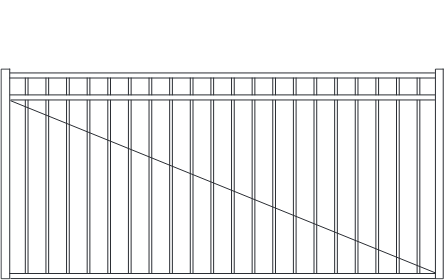

Drive Gate - Flat Top / Flat Bottom Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

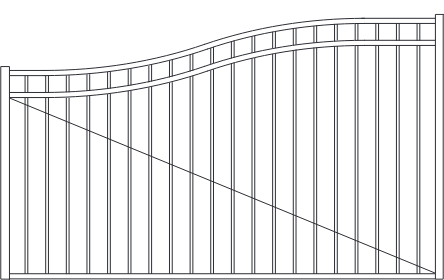

Drive Gate - Flat Top / Flat Bottom Three Rail Arched

Widths:
8’ - 96” (2438mm)

Walk Gate - Flat Top / Flat Bottom Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

Drive Gate - Flat Top / Flat Bottom Two Rail

Widths:
6’ - 72” (1829mm)

Walk Gate - Pressed Spear Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

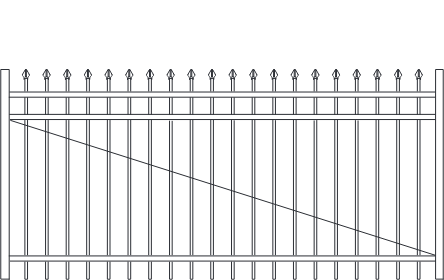

Drive Gate - Pressed Spear Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

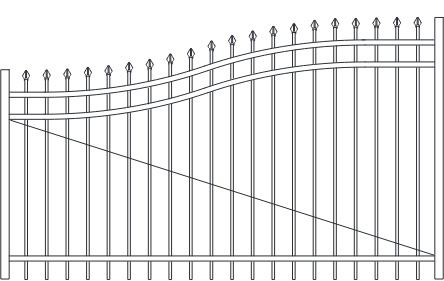

Drive Gate - Pressed Spear Three Rail Arched

Widths:
8’ - 96” (2438mm)

Walk Gate - Pressed Spear Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

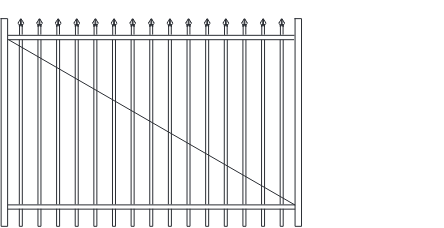

Drive Gate - Pressed Spear Two Rail

Widths:
6’ - 72” (1829mm)

Walk Gate - Pressed Spear / Flat Bottom Three Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

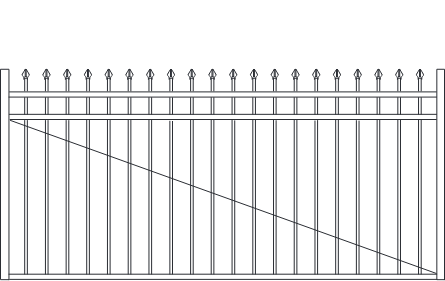

Drive Gate - Pressed Spear / Flat Bottom Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

Walk Gate - Pressed Spear / Flat Bottom Two Rail

Widths:
4’ - 46-1/2" (1181mm)
5' - 58-1/2" (1489mm)

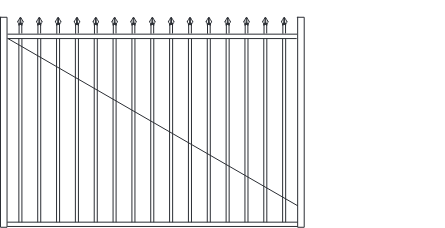

Drive Gate - Pressed Spear / Flat Bottom Two Rail

Widths:
6’ - 72” (1829mm)

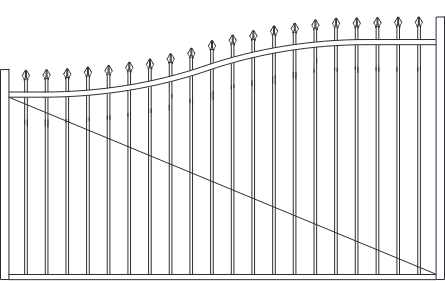

Drive Gate - Pressed Spear Two Rail Arched

Widths:
8’ - 96” (2438mm)

Walk Gate - Extended Picket Three Rail

Widths:
4’ - 46-1/2" (1181mm)

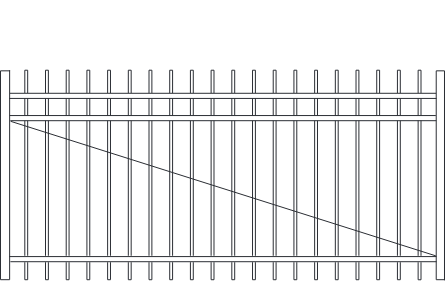

Drive Gate - Extended Picket Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

Walk Gate - Extended Picket Two Rail

Widths:
4’ - 46-1/2" (1181mm)

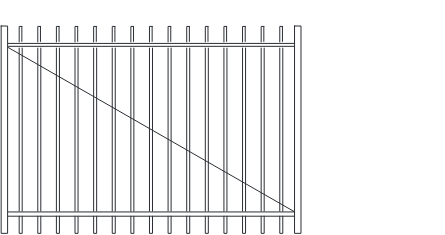

Drive Gate - Extended Picket Two Rail

Widths:
6’ - 72” (1829mm)

Walk Gate - Extended Picket / Flat Bottom Three Rail

Widths:
4’ - 46-1/2" (1181mm)

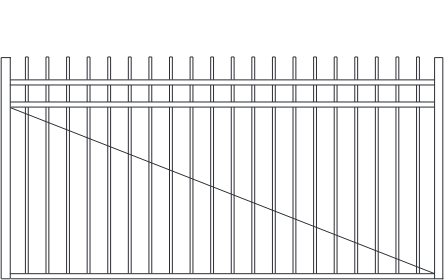

Drive Gate - Extended Picket / Flat Bottom Three Rail

Widths:
6’ - 72” (1829mm)
8’ - 96” (2438mm)

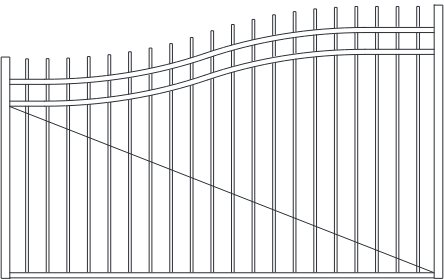

Drive Gate - Extended Picket / Flat Bottom Three Rail Arched

Widths:
8’ - 96” (2438mm)

Walk Gate - Extended Picket / Flat Bottom Two Rail

Widths:
4’ - 46-1/2" (1181mm)

Drive Gate - Extended Picket / Flat Bottom Two Rail

Widths:
6’ - 72” (1829mm)

Visit the Sales Sheet for more details, as well as custom options.

Gloss Black (Optional)

Black Sand (Standard)

V2 Case Studies

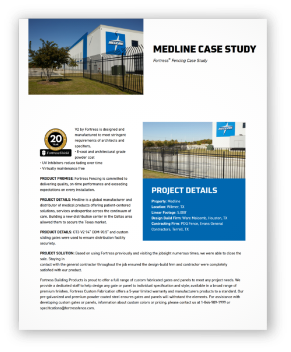

Medline

See how our commercial ornamental fencing exceeded expectations for the new distribution center for this global manufacturer and distributor of medical products.

View the Case Study

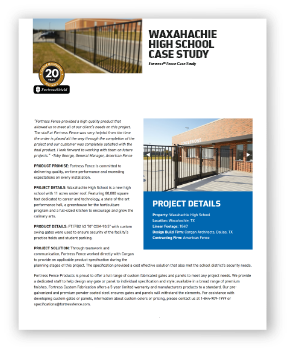

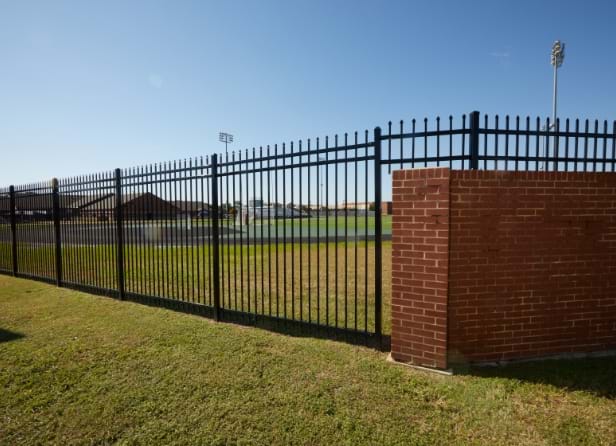

Waxahachie High School

Read about how our V2 commercial ornamental fencing surrounds this new high school campus with cost-effective performance and lasting protection.

View the Case Study
