Lightweight Quick Install
Adjustable Hidden Fasteners
Stands Up to Coastal Weather

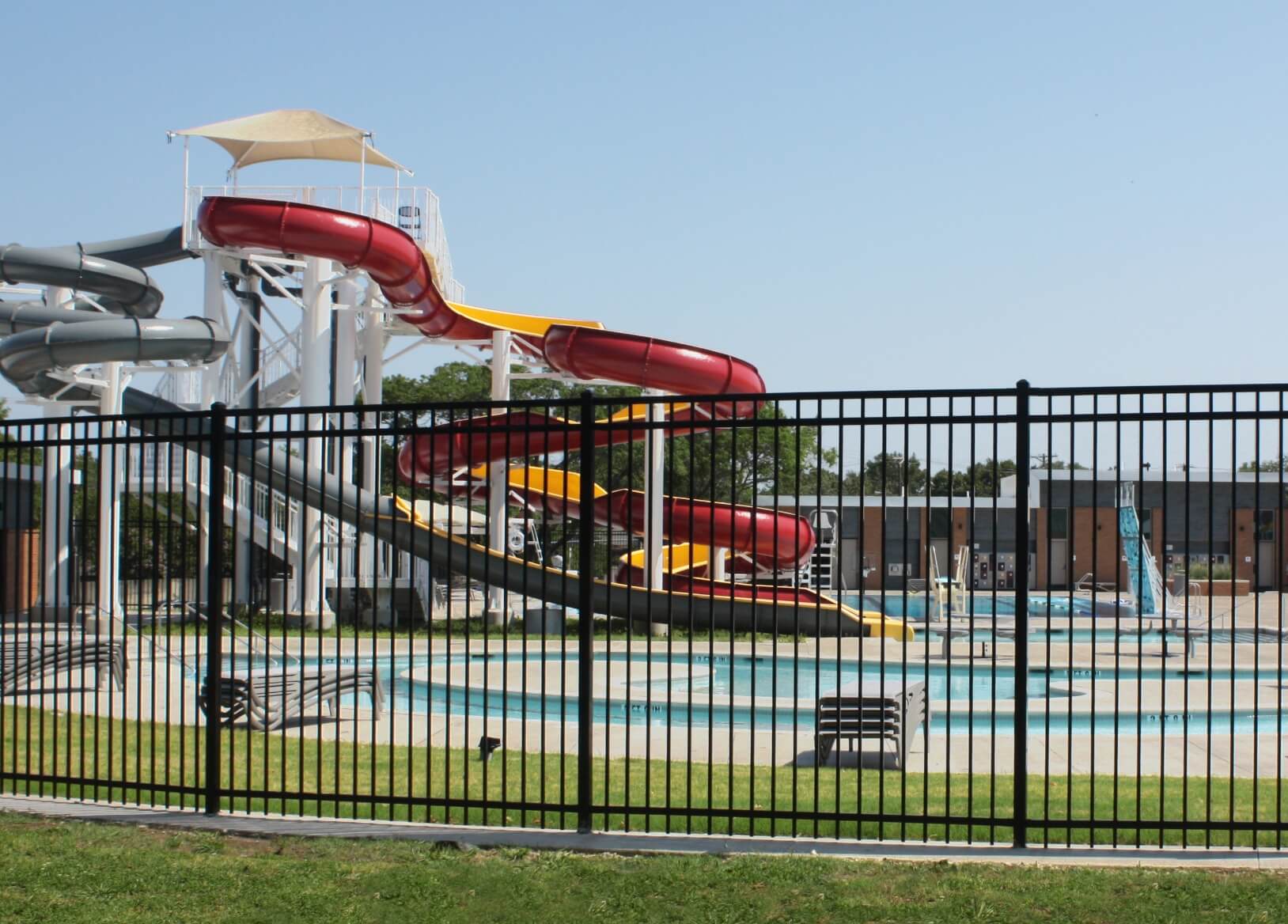

V3 Fencing Key Features

Key Features

  • Easy rackability adjusts to grade changes in the landscape
  • Patented* Pin-Hinge Technology allows rackability without metal on metal, ensuring no metal fatigue or compromising of the powder coat
  • Patented* hidden pin-hinge system means no visible fasteners
  • Highly customizable, with options such as flat top, flat top/flat bottom, extended picket, pressed spear and curved top
  • Perfectly smooth rails with no unsightly picket-to-rail connection points
  • Virtually maintenance-free, thanks to the FortressShield coating
  • Simple bracket design speeds installation, while security fasteners add strength for commercial applications
  • Peace of mind with a FortressShield 20-year limited manufacturer warranty
  • *US Patent No. 8899555, Canadian Patent No. 2,698,715, Australian Patent No. 2008296065, European Patent No. 08799266.5

Versai Gates

Our VERSAI ornamental steel fencing line includes walk and drive gates to match each fence style. We can also design and build a custom gate to your specifications in a broad range of premium finishes. Available gate styles include 4' flat, 4' arched, 5' flat, 5' arched, 6' drive, 8' drive and 8' arched drive.

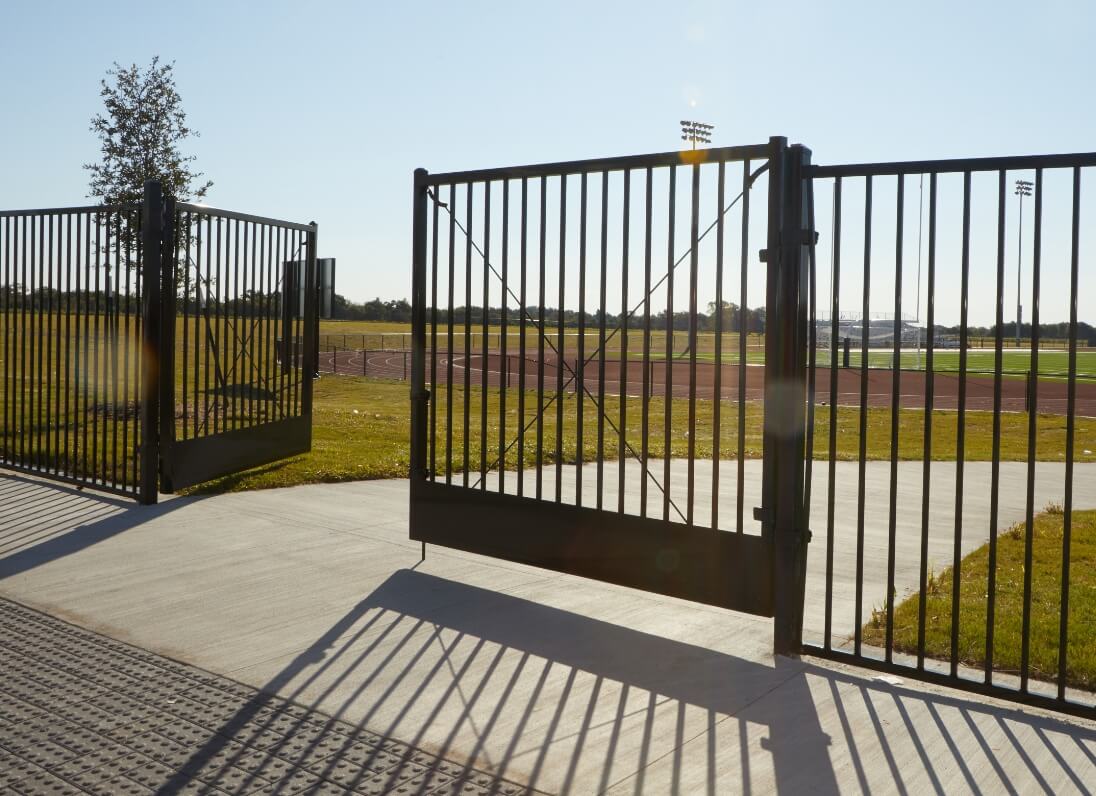

V3 Gates

Visit the Sales Sheet for more details, as well as custom options. 4' Flat available with custom options for additional width and heights.

Visit the Sales Sheet for more details, as well as custom options.
Rail: 1-3/4" (44mm) X 1-3/4" (44mm) (12ga)
Picket: 1" (25mm) (14ga)
Gate Upright: 2" (50mm) (11ga)
Air Space: 3-15/16" (100mm)
Rackability: 24" (609mm)

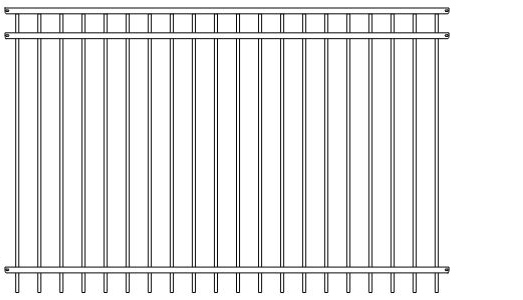

Flat Top Three Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

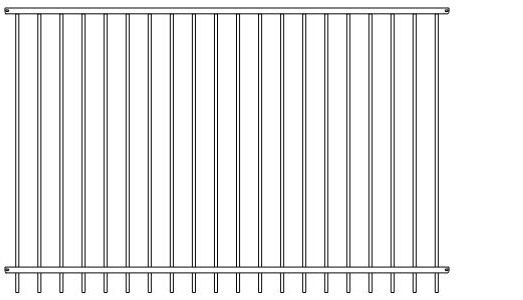

Flat Top Two Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

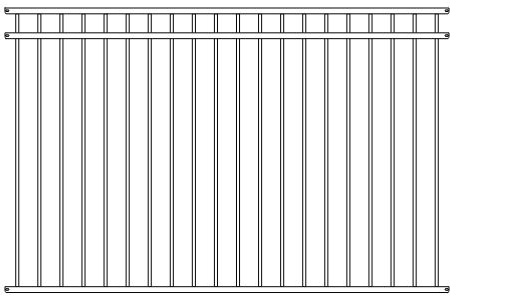

Flat Top / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

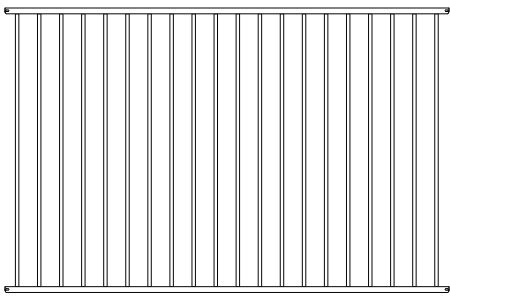

Flat Top / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon

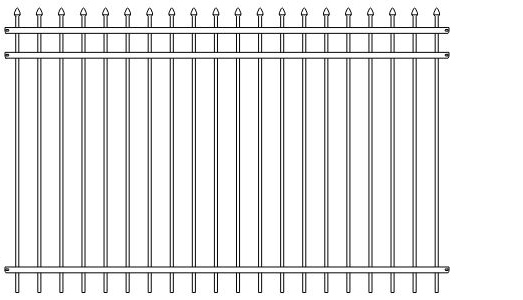

Pressed Spear Three Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

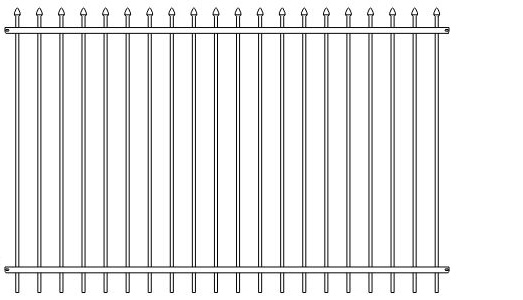

Pressed Spear Two Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

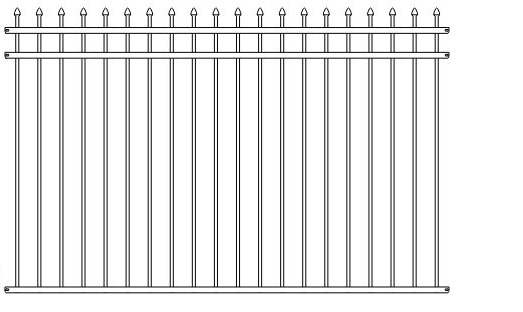

Pressed Spear / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

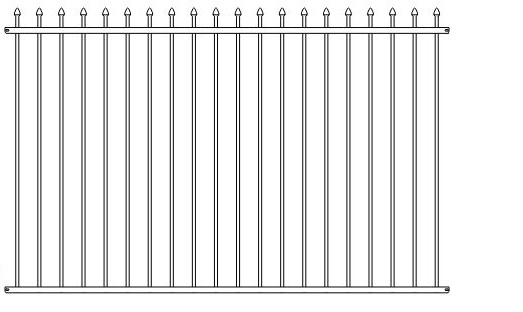

Pressed Spear / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

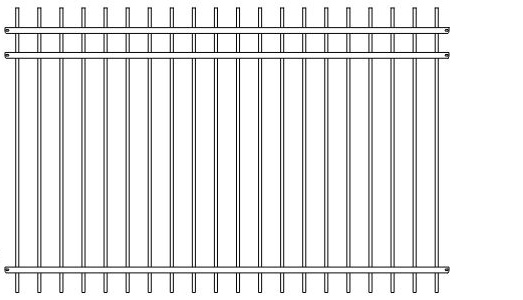

Extended Picket Three Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

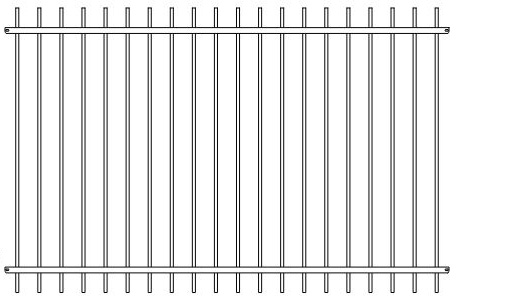

Extended Picket Two Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon

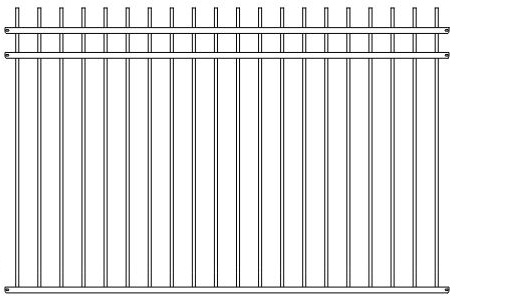

Extended Picket / Flat Bottom Three Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

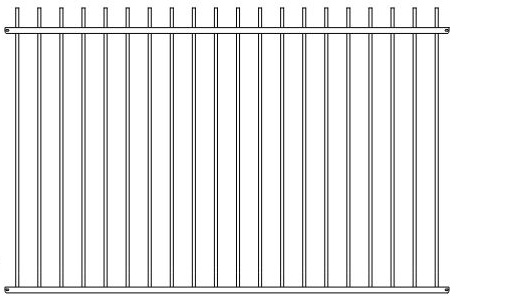

Extended Picket / Flat Bottom Two Rail Panels - 90.5" (2299mm)

Heights:
40” (1016mm)
46” (1168mm)
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

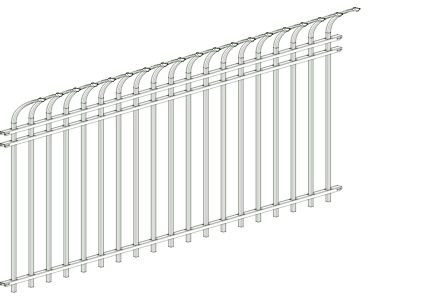

Curved Top Three Rail Panels - 90.5" (2299mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

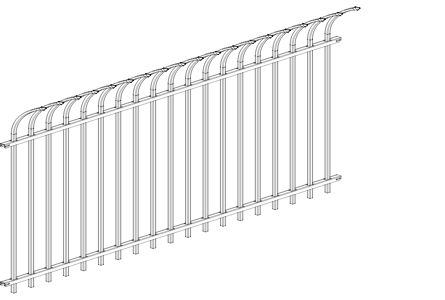

Curved Top Two Rail Panels - 90.5" (2299mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

ICC Pool Code Icon MEETS ICC POOL CODE. Always Consult Local Code Requirements.

Visit the Sales Sheet for more details, as well as custom options.

Post With Base Plate (14ga) - 2.5” (63mm)

Heights:
38” (965mm)
44” (1118mm)
58” (1473mm)
62” (1575mm)
74” (1880mm)

With 6” (154mm) Base Plate

Post Without Base (16ga, 14ga, 12ga) - 2.5” (63mm)

Heights:
72” (1829mm)
84” (2134mm)
96” (2438mm)
108” (2743mm)
120” (3048mm)
132” (3353mm)

Post Without Base (14ga, 12ga) - 3” (75mm)

Heights:
72” (1829mm)
84” (2134mm)
96” (2438mm)
108” (2743mm)
120” (3048mm)
132” (3353mm)
144” (3658mm)

Post Without Base (11ga) - 4” (100mm)

Heights:
72” (1829mm)
84” (2134mm)
96” (2438mm)
108” (2743mm)
120” (3048mm)
132” (3353mm)
144” (3658mm)
156” (3962mm)

Nylon Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)

Pressed Dome Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)
4" (102mm)

Ball Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)

Ext. One Dir. (EX-107)

Ext. Two Dir. (EX-207)

Ext. Three Dir. (EX-307)

Swivel (EXS-107)

Pro Series Hinge

Pro Series Fork Latch

Pro Series Slide Latch

Pro Series Drop Rod

Visit the Sales Sheet for more details, as well as custom options.

Readyset Cement & Grout

Custom gates available to match V3
Custom gates available in swing, double swing, V-track and cantilever.

Walk Gate - Flat Top Three Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Flat Top / Flat Bottom Three Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Pressed Spear Three Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Pressed Spear / Flat Bottom Three Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Extended Picket Three Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Extended Picket / Flat Bottom Three Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Flat Top Two Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Flat Top / Flat Bottom Two Rail

Widths:
4’ - 46.5” (1181mm)

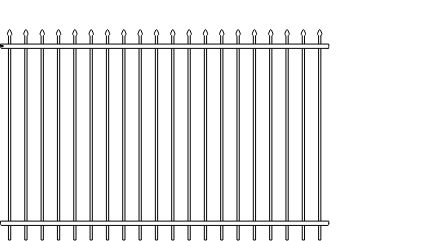

Walk Gate - Pressed Spear Two Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Pressed Spear / Flat Bottom Two Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Extended Picket Two Rail

Widths:
4’ - 46.5” (1181mm)

Walk Gate - Extended Picket / Flat Bottom Two Rail

Widths:
4’ - 46.5” (1181mm)

PREMIUM FINISH

Fortress Fe26 PLUS commercial steel railing is available in a premium textured finish. This finish offers more than just style—it is also engineered to withstand the elements.

Black Sand

Black Gloss
