Superior Rackability
Larger Rail Wider Picket Profiles
Lightweight Yet Durable

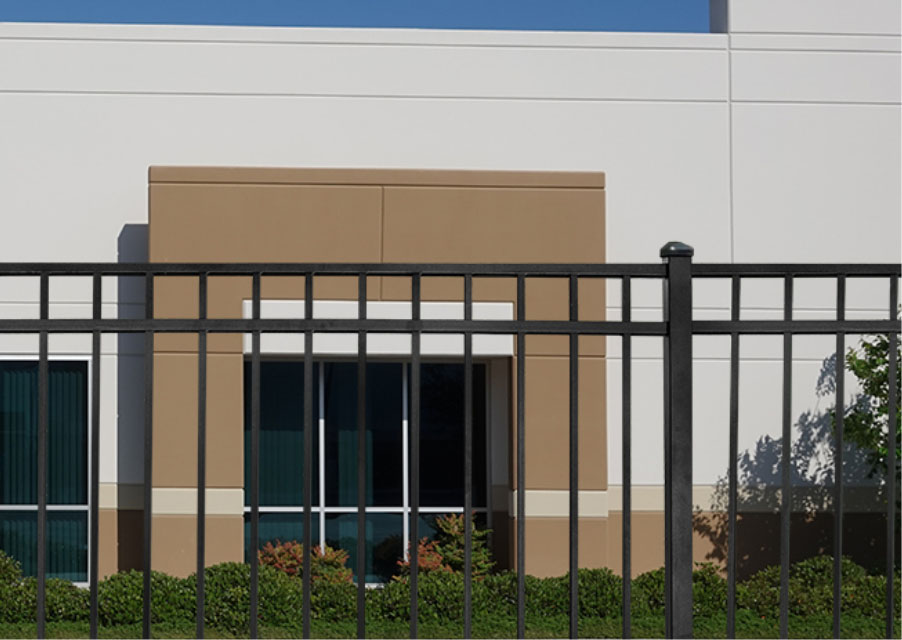

Athens Fencing Key Features

Key Features

  • Largest range of rackability in commercial market
  • Hidden picket to rail fastener system offering high-quality aesthetics
  • Notched Rail & Pre-Punched Post design
  • Architectural grade powder coating process
  • Color matched panel to post stainless steel fasteners
  • Perfect for saltwater & coastal environments
  • Rust-free panels, post & fasteners
  • Lifetime limited warranty maximizes your investment

Basic Specifications

  • Pickets: .75" x .75"
  • Rails: 1.25" x 1.50"
  • Picket Spacing: 3.75"
  • Multiple styles with true panel heights ranging from 48" to 72"

Visit the Sales Sheet for more details as well as custom options.

Rail: 1-1/2" (25mm)
Picket: 3/4" (16mm)
Gate Upright: 2" (38mm)
Air Space: 3-3/4" (98mm)
Rackability: 40" (880mm)

Flat Top 2 + 3 Rails - 72" (1829mm) & 96" (2439mm)

Heights:
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Flat Top / Flat Bottom 2 + 3 Rails - 72" (1829mm) & 96" (2439mm)

Heights:
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

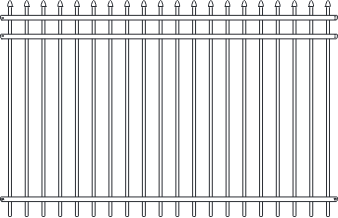

Pressed Spear 2 + 3 Rails - 72" (1829mm) & 96" (2439mm)

Heights:
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

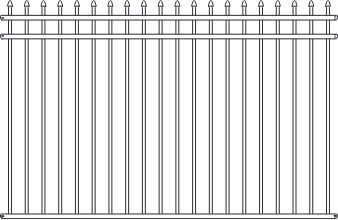

Pressed Spear / Flat Bottom 2 + 3 Rails - 72" (1829mm) & 96" (2439mm)

Heights:
48"* (1219mm) ICC Pool Code Icon
54" (1372mm) ICC Pool Code Icon
60"* (1524mm) ICC Pool Code Icon
72"* (1829mm) ICC Pool Code Icon

*2 & 3 Rail options available.
Certain panel configurations will meet ICC Pool Code.

Visit the Sales Sheet for more details as well as custom options.

Punched Posts - 2.5" (64mm) and 3" (76mm)

Heights:
72" (1829mm)
78" (1981mm)
84" (2134mm)
96" (2439mm)

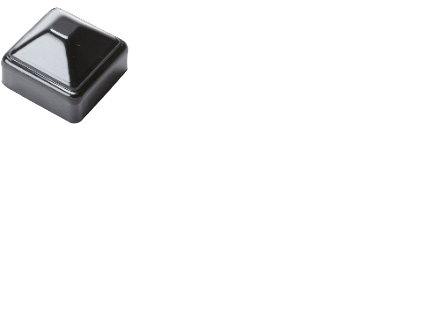

Pressed Dome Cap

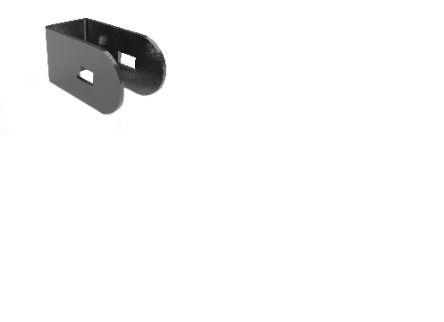

Wall Mount Bracket

Post Base Adapter & Cover

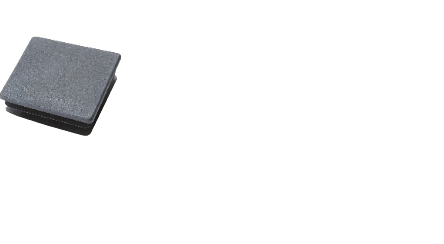

Nylon Gate Upright Cap

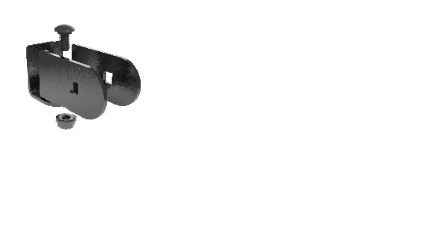

Swivel Bracket

Gate Latch & Hinge Kit

Visit the Sales Sheet for more details as well as custom options.

Custom gate sizes available.

Walk Gate - Flat

Widths:
4' - 48" (1219mm)
5' - 60" (1524mm)

Walk Gate - Arched

Widths:
4' - 48" (1219mm)
5' - 60" (1524mm)

Drive Gate - Flat

Widths:
6' - 72" (1829mm)

Drive Gate - Arched

Widths:
6' - 72" (1829mm)

Visit the Sales Sheet for more details as well as custom options.

Gloss Black

Black Sand

Bronze

White

Additional colors available
for custom orders.
