Clean Treated Welds
Premium Powder Coat
Elegant Designs

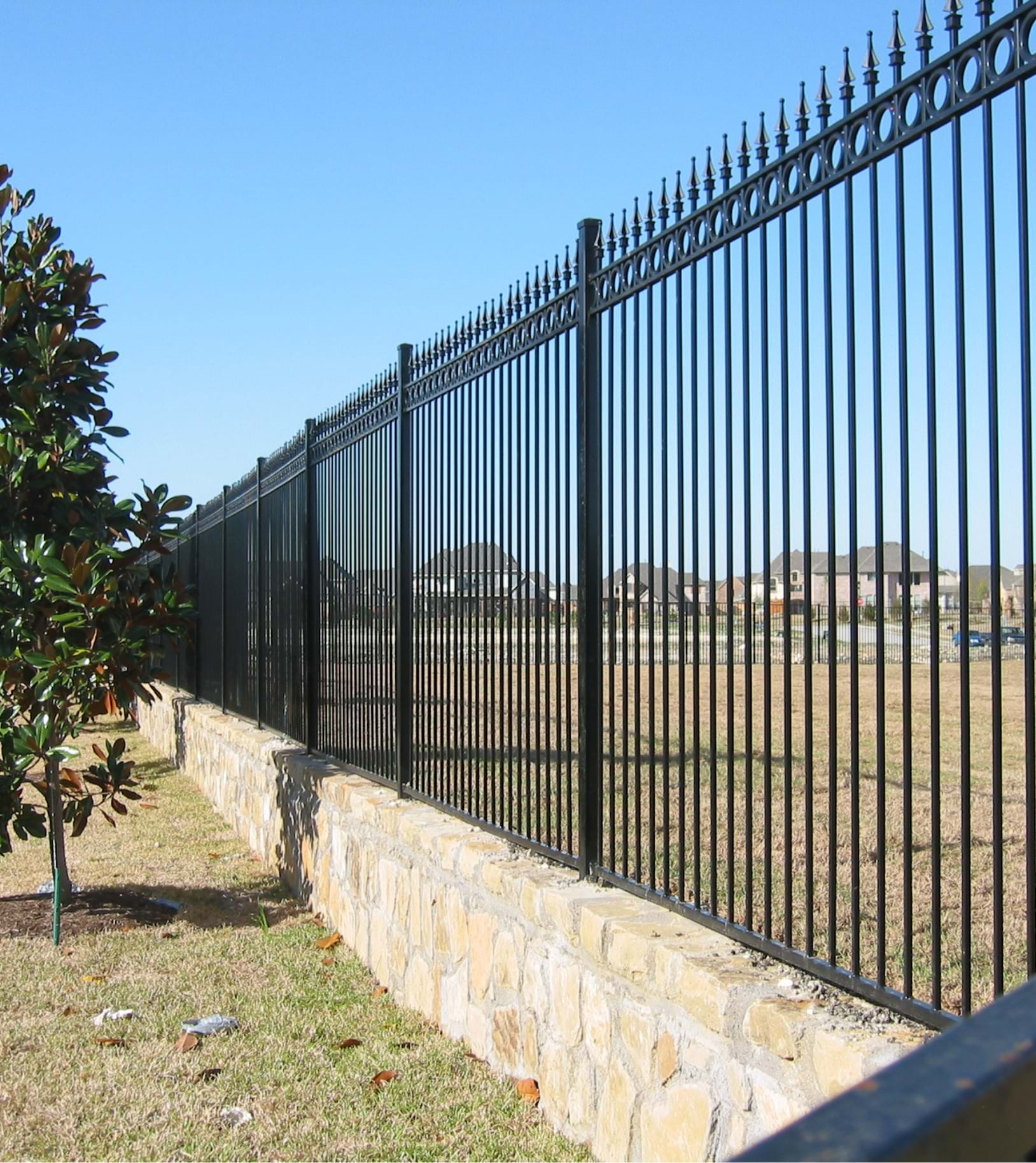

Versai Fencing Key Features

Key Features

  • Available styles include flat top/flat bottom, extended picket and spear point picket
  • Add style with finials, knuckles and post accessories
  • Cost-effective, so architects, homeowners and contractors can choose an upscale look and stay in budget
  • Years of beauty, thanks to the FortressGuard coating
  • Simple bracket design speeds installation, which reduces labor cost
  • Optional dog panels reduce picket spacing along the bottom of the fence to keep small dogs in or unwanted animals out
  • Peace of mind with a FortressGuard 10-year manufacturer limited warranty

Classic Residential Gates

Our Classic Residential premium welded fencing line includes walk and drive gates to match each fence style. We can also design and build a custom gate to your specifications in a broad range of premium finishes. 4' walk gate and 6' drive gate options available.

Visit the Sales Sheet for more details, as well as custom options.
Rail: 1" (25mm)
Picket: 5/8" (16mm)
Gate Uprights: 1.5" (38mm)
Air Space: 3-7/8" (98mm)

Flat Top / Flat Bottom - 90.5” (2299mm)

Heights:
46" (1169mm)
48" (1219mm) ICC Pool Code Icon
58" (1473mm) ICC Pool Code Icon
70" (1778mm) ICC Pool Code Icon

Extended Picket - 90.5” (2299mm)

Heights:
46” (1169mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon

Pressed Spear - 90.5” (2299mm)

Heights:
46” (1169mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon

Add On Dog Panel - 90.5” (2299mm)

Heights:
18" (457mm)

Adding These Panels To An Extended Picket Or Pressed Spear Design Brings A 3-7/8" (98mm) Air Space To Just 1-5/8" (41mm). Dog Add-On Panel As Shown Installed.

ICC Pool Code Icon MEETS ICC POOL CODE. Always Consult Local Code Requirements.

Visit the Sales Sheet for more details, as well as custom options.

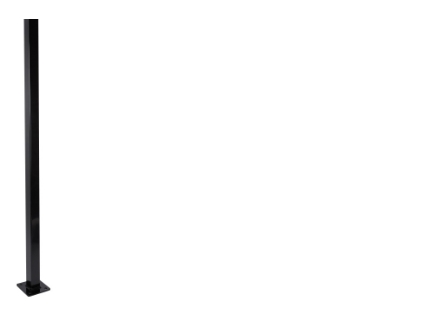

Post With Base Plate (16ga) - 2” (50mm)

Heights:
52" (1321mm)
58" (1473mm)
64" (1626mm)
74" (1880mm)

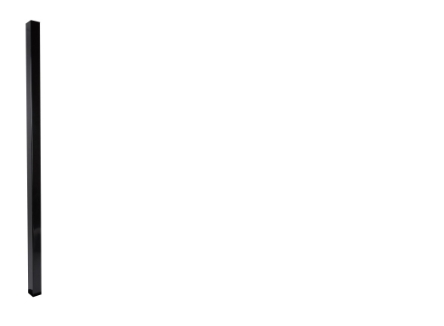

Post Without Base (16ga) - 2” (50mm)

Heights:
72" (1829mm)
84" (2134mm)
96" (2439mm)
108" (2743mm)

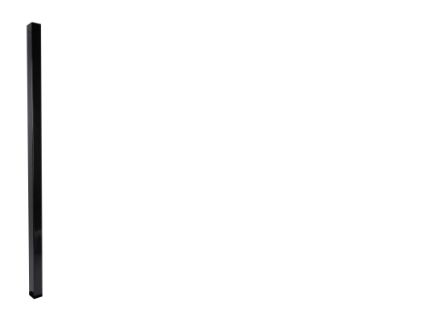

Post Without Base (16ga, 14ga & 12ga) - 2.5” (63mm)

Heights:
72" (1829mm)
84" (2134mm)
96" (2439mm)
108" (2743mm)
120" (3048mm)
132" (3353mm)

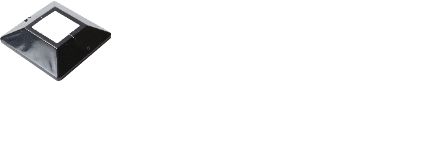

Base Plate Cover - 5” (127mm)

Nylon Cap

Heights:
5/8” (16mm)
1.5” (38mm)
2” (50mm)
2.5” (63mm)

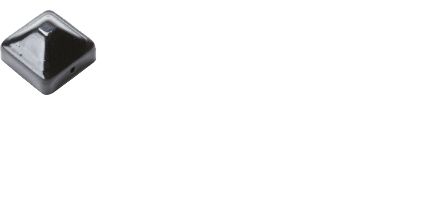

Pressed Dome Cap

Heights:
1.5” (38mm)
2” (50mm)
2.5” (63mm)

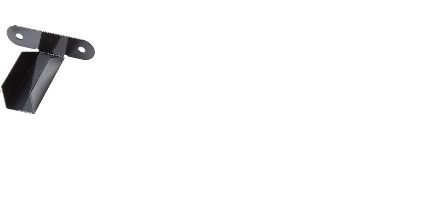

Side Mount - Bracket (SM-08) - Horizontal Adjustability

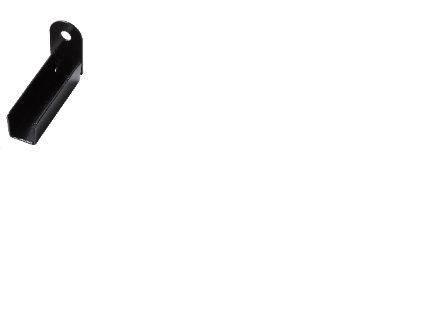

Heavy Duty Bracket (HD-104) - Standard 90 ̊ Angles

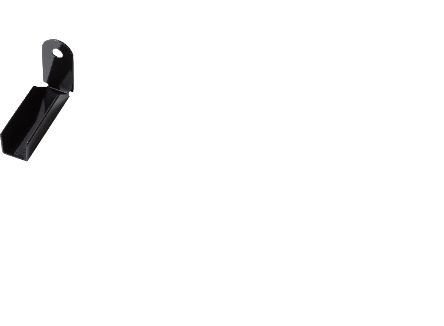

Adjustable Bracket (AL-104) - Vertical Adjustability

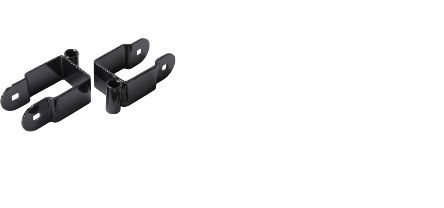

Residential Hinge

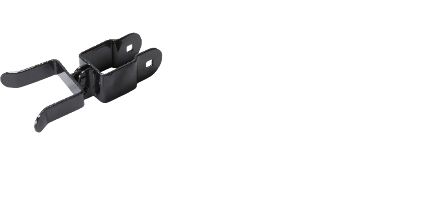

Residential Fork Latch

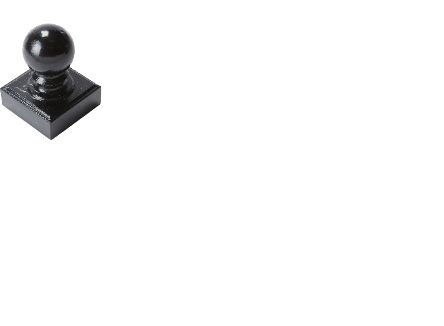

Ball Cap

Heights:
2” (50mm)
2.5” (63mm)

Visit the Sales Sheet for more details, as well as custom options.

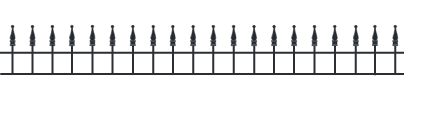

Spear Top (SPT)

Adds 11” (280mm) to overall panel height

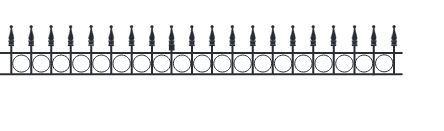

Spear Top Ring Top (STRT)

Adds 11” (280mm) to overall panel height

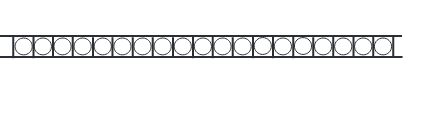

Ring Top (RT)

Adds 5" (127mm) to overall panel height

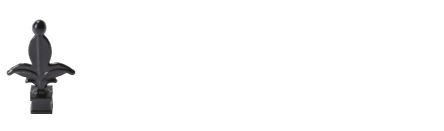

Fleur De Lis Finial

Finials Add To Overall Panel Height.

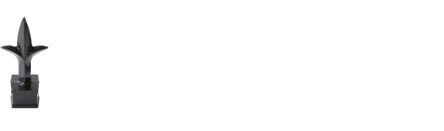

Triad Finial


COMING FALL 2020 - ALUMINUM FINIALS

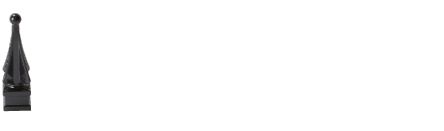

Quad Finial

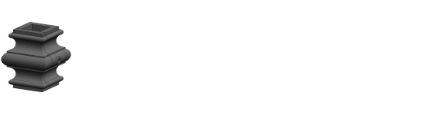

2 Piece Knuckle Finial

Finials Add To Overall Panel Height.

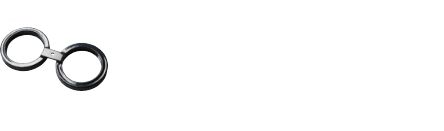

Rings

Ball Cap

Heights:
2” (50mm)
2.5” (63mm)

Visit the Sales Sheet for more details, as well as custom options.

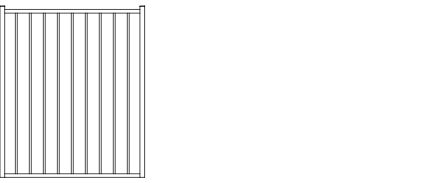

Walk Gate - Flat Top / Flat Bottom - 46.5” (1181mm) OTO

Heights:
46” (1168mm)
48” (1219mm) ICC Pool Code Icon
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

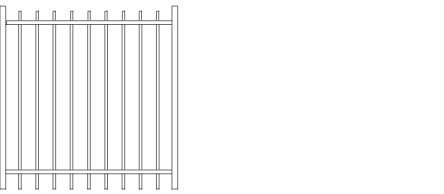

Walk Gate - Extended Picket - 46.5” (1181mm) OTO

Heights:
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon

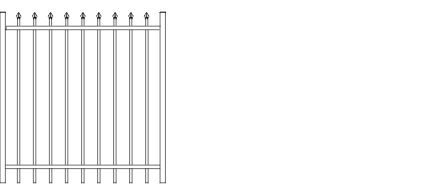

Walk Gate - Pressed Spear - 46.5” (1181mm) OTO

Heights:
46” (1168mm)
58” (1473mm)
70” (1778mm) ICC Pool Code Icon

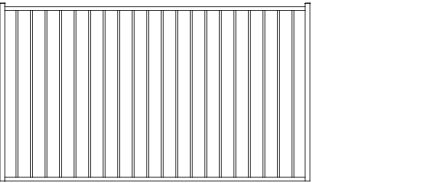

Drive Gate Gate - Flat Top / Flat Bottom - 72” (1829mm) OTO

Heights:
46” (1168mm)
48” (1219mm) ICC Pool Code Icon
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

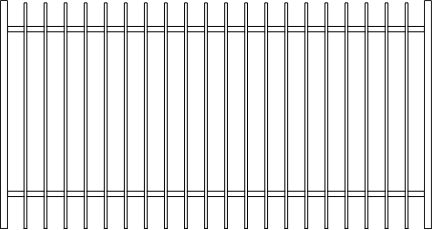

Drive Gate - Extended Picket - 72” (1829mm) OTO

Heights:
46” (1168mm)
48” (1219mm) ICC Pool Code Icon
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

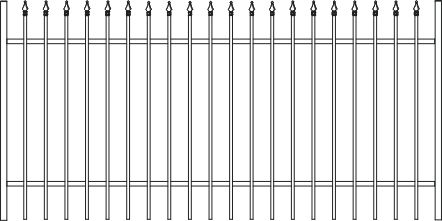

Drive Gate - Pressed Spear - 72” (1829mm) OTO

Heights:
46” (1168mm)
48” (1219mm) ICC Pool Code Icon
58” (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

ICC Pool Code Icon MEETS ICC POOL CODE. Always Consult Local Code Requirements.

Black Sand (Standard)

Gloss Black (Optional)
