Durable
Secure
Engineered

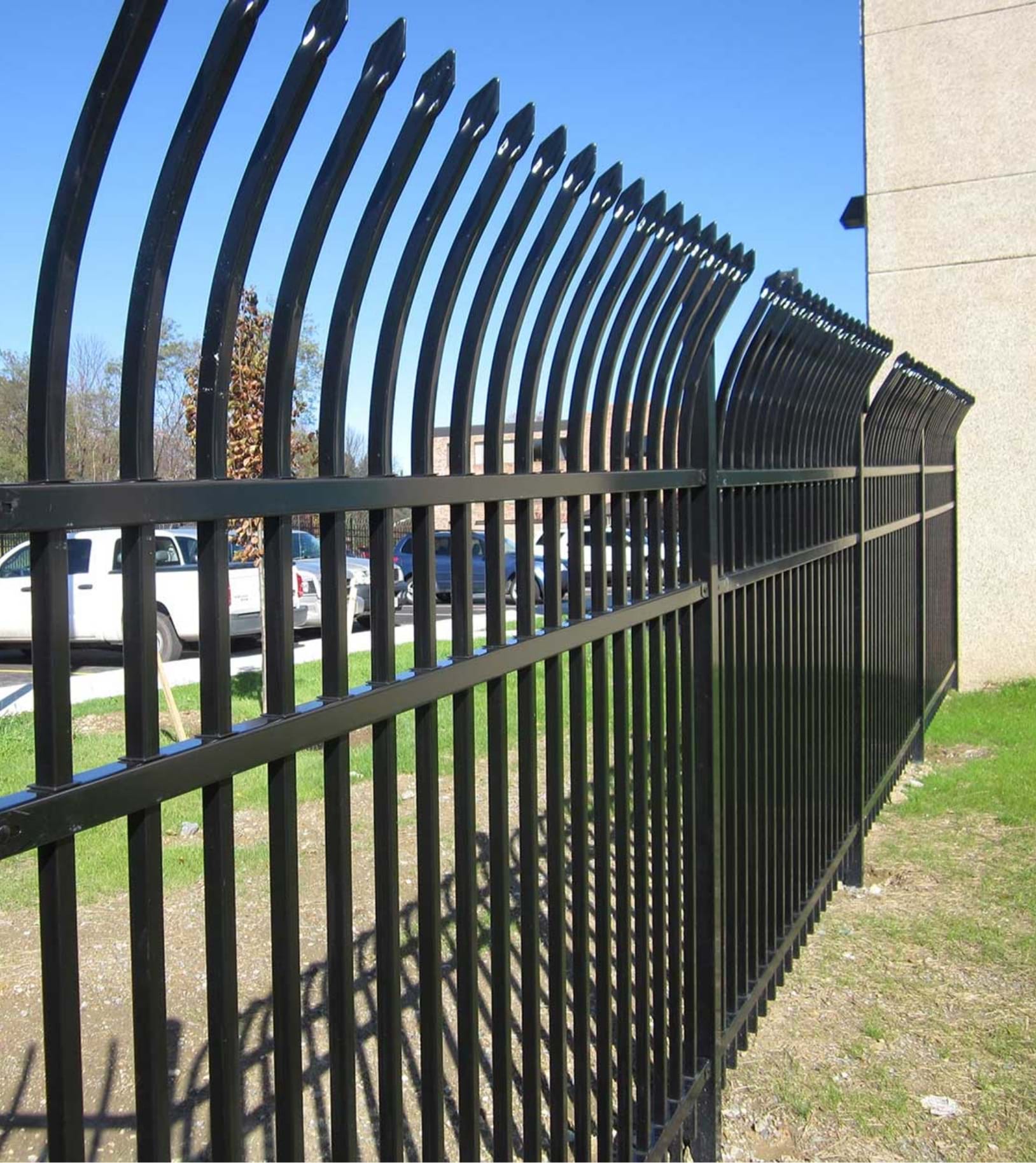

Titan Custom Fencing Key Features

Key Features

  • Manufactured in the U.S.A.
  • Slide Lock Technology allows for rackable installation up to 24" on an 8' panel to match the terrain
  • Assembled panels can support 680-lb mid span load, which exceeds the ASTM standard
  • Fully pre-assembled for faster installations
  • Titan Custom is manufactured with G90 pre-galvanized steel
  • Customizable with 2, 3 and 4 rail options in heights up to 15'
  • Available in Flat Top, Flat Top/Flat Bottom, Extended Picket, Spear Point Picket and Curve Top styles
  • Peace of mind with a FortressArmour 20-year limited manufacturer’s warranty

Suitable For Commercial and Industrial Projects

  • Pickets are available in 18 gauge, 16 gauge and 14 gauge, depending on the application

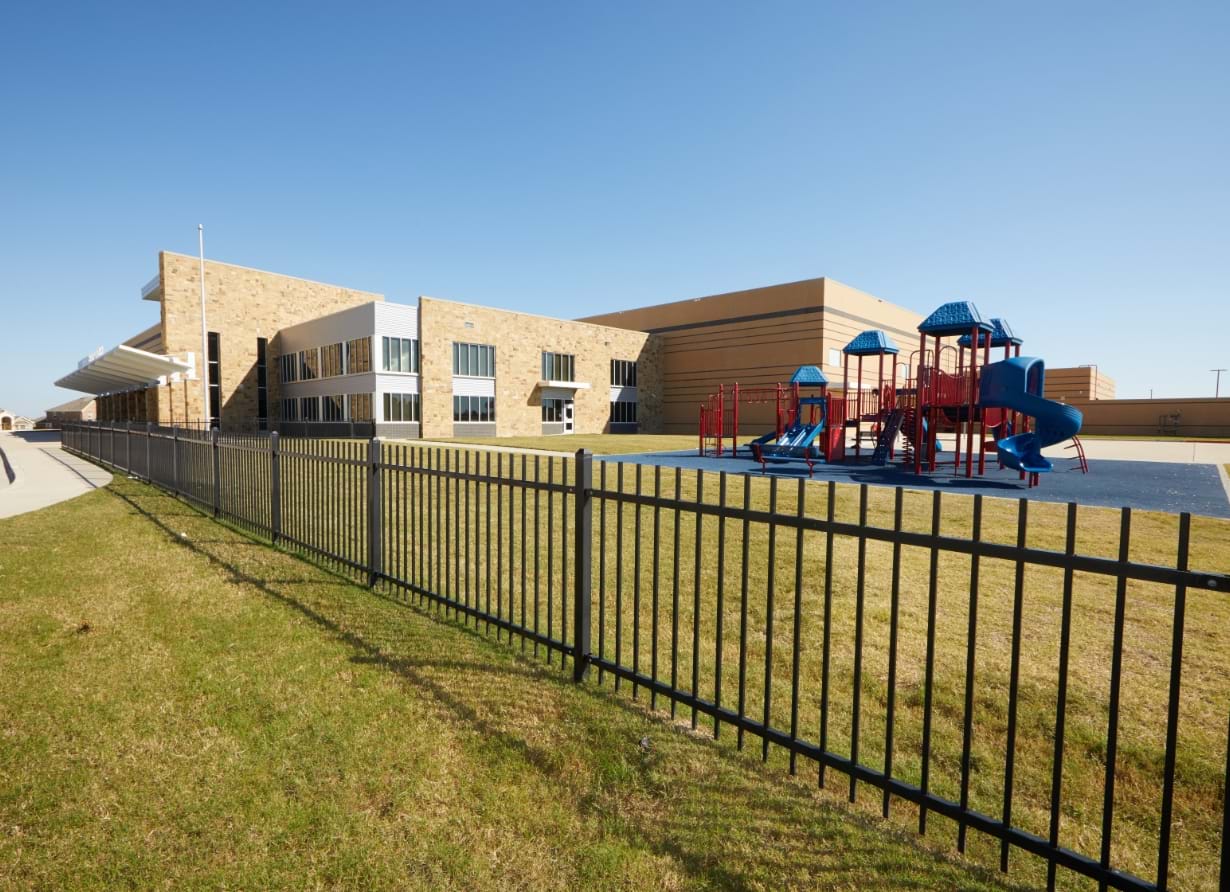

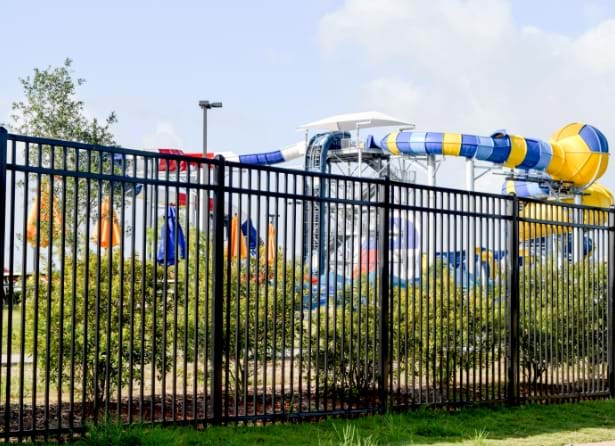

  • Titan is applicable for projects such as version suitable schools, public housing, public pools, apartment complexes, churches and restaurants
  • Industrial version suitable for projects such as energy plants, water treatment facilities, stadiums, universities and hospitals

Titan Architectural Gates

Fortress® can design and build a custom gate to your specifications in a broad range of premium finishes.

Try our interactive
visualizer tool!

Explore Now

Download the
Sales Sheet

Check it Out

Download the
Product Guide

See It All

Visit the Sales Sheet for more details, as well as custom options.
Rail: 1-3/4" (44mm) x 1-3/4" (44mm) (14 ga)
Picket: 1" (25mm)
Air Space: 3-5/16" (100mm)

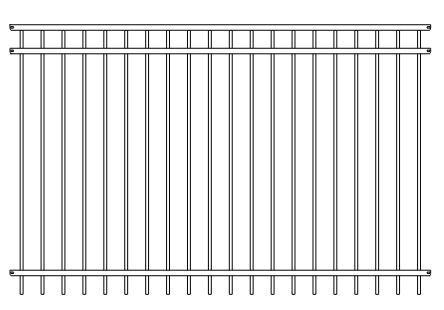

Flat Top Three Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

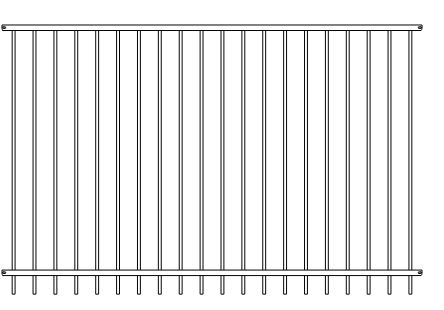

Flat Top Two Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
40" (1016mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

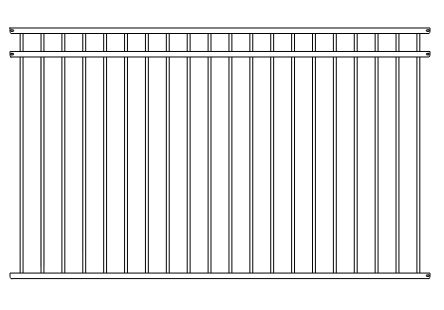

Flat Top / Flat Bottom Three Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

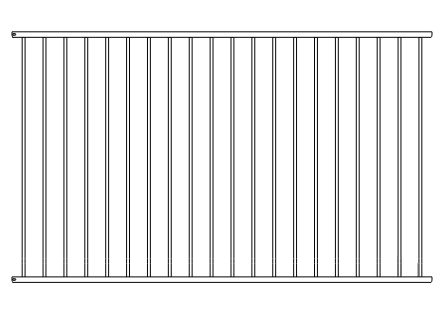

Flat Top / Flat Bottom Two Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

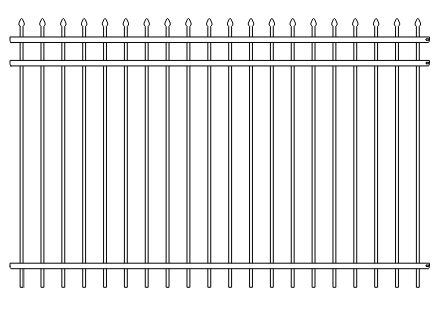

Pressed Spear Three Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

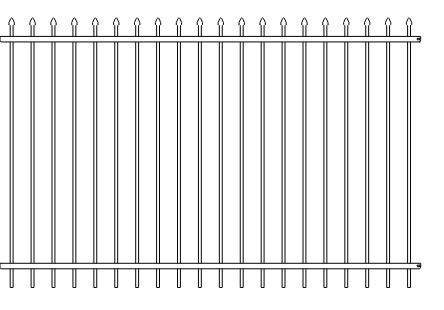

Pressed Spear Two Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

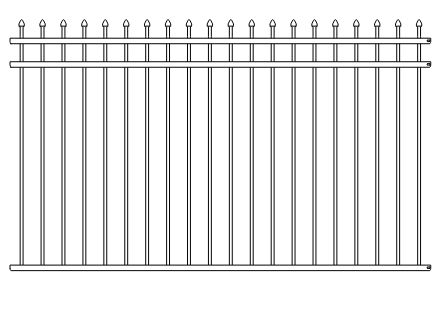

Pressed Spear / Flat Bottom Three Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

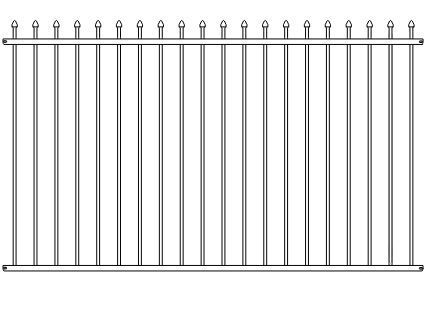

Pressed Spear / Flat Bottom Two Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

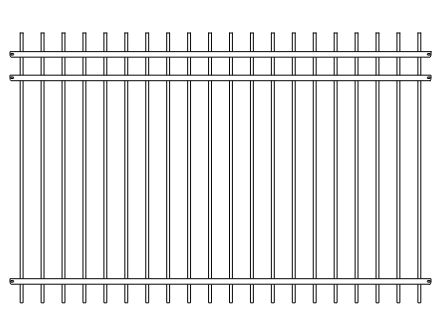

Extended Picket Three Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

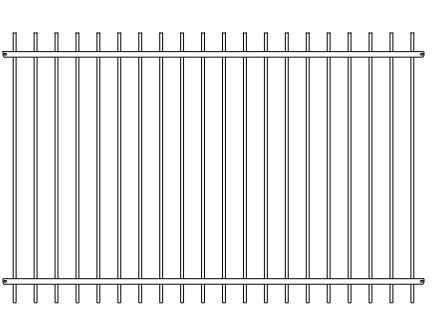

Extended Picket Two Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

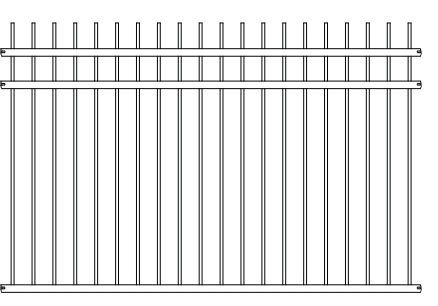

Extended Picket / Flat Bottom Three Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm)
70” (1778mm) ICC Pool Code Icon
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

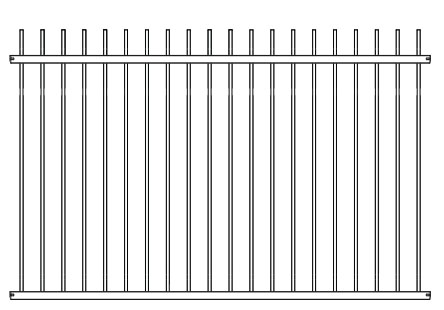

Extended Picket / Flat Bottom Two Rail Panels - 92" (2337mm)

Heights:
34" (864mm)
46" (1168mm)
58" (1473mm) ICC Pool Code Icon
70” (1778mm) ICC Pool Code Icon

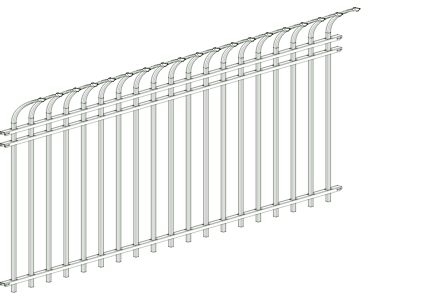

Curved Top Three Rail Panels - 92" (2337mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon
106" (2692mm) ICC Pool Code Icon
118" (2997mm) ICC Pool Code Icon

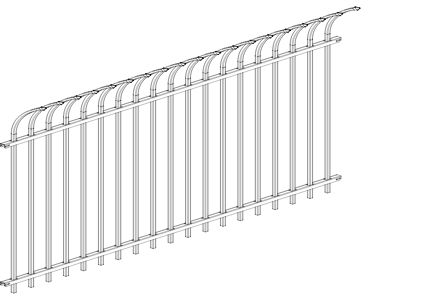

Curved Top Two Rail Panels - 92" (2337mm)

Heights:
82” (2083mm) ICC Pool Code Icon
94” (2388mm) ICC Pool Code Icon

ICC Pool Code Icon MEETS ICC POOL CODE. Always Consult Local Code Requirements.

Visit the Sales Sheet for more details, as well as custom options.

Plated Post - 2.5" (63mm) (14ga)

Heights:
38" (965mm)
44" (1117mm)
58" (1473mm)
62" (1574mm)
74" (1880mm)

Post - 2.5" (63mm) (14ga, 12ga)

Heights:
72" (1828mm)
84" (2133mm)
96" (2438mm)
108" (2473mm)
120" (3048mm)
132" (3352mm)

Post - 3" (75mm) (14ga, 12ga)

Heights:
72" (1828mm)
84" (2133mm)
96" (2438mm)
108" (2473mm)
120" (3048mm)
132" (3352mm)
144" (3657mm)

Post - 4" (102mm) (11ga)

Heights:
72" (1828mm)
84" (2133mm)
96" (2438mm)
108" (2473mm)
120" (3048mm)
130" (3302mm)
144" (3657mm)
156" (3962mm)

Nylon Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)

Pressed Dome Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)
4" (102mm)
6" (152mm)

Ball Cap

Sizes:
2" (50mm)
2.5" (63mm)
3" (75mm)

Ext. One Dir. (EX-107)

Ext. Two Dir. (EX-207)

Sizes:
2.5" (63mm)
3" (75mm)

Ext. Three Dir. (EX-307)

Sizes:
2.5" (63mm)
3" (75mm)

Swivel (EXS-107)

Pro Series Hinge

Pro Series Fork Latch

Pro Series Drop Rod

Pro Series Slide Latch

Readyset Cement & Grout

Gloss Black (Optional)

Black Sand (Standard)

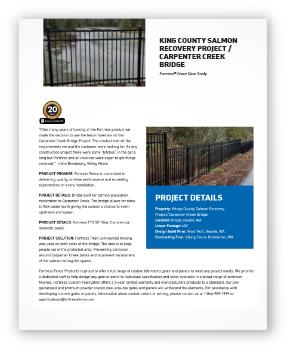

Titan Custom Case Study

King County Salmon Recovery Project / Carpenter Creek Bridge

Discover how our Titan Custom Industrial Steel Fencing help keep people out of a protected area, preventing erosion around creek banks and helping salmon during the spawn.
